UT35A-001-11-00 Yokogawa Digital Indicating Controllers User’s Manual

UT35A-001-11-00 Yokogawa Digital Indicating Controllers User’s Manual

MOQ: 1
Price: variable
Standard Packaging: Carton
Delivery Period: Negotiate
Payment Method: T/T
Supply Capacity: 50pcs/weeks
Detail Information
Place of Origin
japan
Brand Name
Yokogawa
Certification
CE
Model Number
UT35A-001-11-00
Manufacturer:
Yokogawa
Product No.:
UT35A-001-11-00
Product Type:
Digital Indicating Controller
Basic Control:
Standard Type
Functions:
None
Open Networks:
RS-485 Communication
Case Color:
Black (Light Charcoal Gray)
Fixed Code:
Always "-00"
Highlight:

Yokogawa Digital Indicating Controllers

,

Yokogawa Digital Indicating Controllers User’s Manual

,

UT35A-001-11-00 Yokogawa Digital Indicating Controllers

Product Description

UT35A-001-11-00 Yokogawa Digital Indicating Controllers User’s Manual



The UT35A and UT32A temperature controllers employ an easy-to-read, 14-segment large color LCD display, along with navigation keys, thus greatly increasing the monitoring and operating capabilities. A ladder sequence function is included as standard. The short depth of the controller helps save instrument panel space. The UT35A/UT32A also support open networks such as Ethernet communication.



UT35A and UT32A Temperature Controller Features

  • 4 target setpoints (PID numbers) available as standard
  • 3 alarm independent common terminals available as standard
  • Ladder sequence programs can be built
  • Simple operation
  • Up to 8 DOs (combinations available)
  • Multiple language operation manual (Japanese, English, German, French, Spanish, Chinese and Korean) available. Please specify the desired language when ordering.
  • Detailed code model available to customize specifications best suited to you.

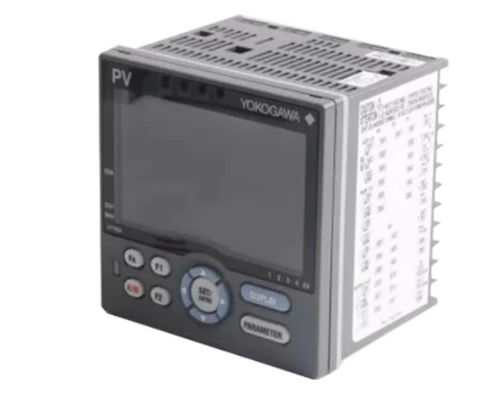

UT35A-001-11-00 Yokogawa Digital Indicating Controllers User’s Manual 0

Specifications

ITEM UT35A
PV input Input type 1 Universal input (TC, RTD, mV, V, mA)
Indication accuracy ±0.1% of F.S.
Control scan period   200 msec
PV/SP data display   14-segment, 5 digits, Bar graph LCD display
Control outputs (MV) Type Relay, Voltage Pulse, Current
Algorithm ON/OFF, PID (Continuous, Time-proportional), Heating/Cooling, Position-proportional
Digital inputs Number 2 (Std) 7 (Max)
Type SP No.Change, PID No. Change, A/M Change, etc
Digital outputs Number 3 (Std) 8 (Max)
Function PV High, PV Low, Dev High, etc
Current trans input (option) Number 2
Retransmission Number 1
Type PV, SP, OUT, etc
Loop power supply (LPS) (option) Number 1
Voltage 21.6 to 28.0 VDC
Communication (option) Number 1
Type RS-485, Ethernet, PROFIBUS-DP, CC-Link, DeviceNet
Other specifications Power supply 100 to 240 VAC (+10%, -15%) or 24 VAC/DC (+10%, -15%) (option)
Power consumption Max 18 VA
Mass Max 0.5 kg
