Phoenix Contact Knife Disconnect Terminal Block-UT 4-MT-3046139

MOQ:	1
Price:	variable
Standard Packaging:	Carton
Delivery Period:	Negotiate
Phoenix Contact Knife Disconnect Terminal Block-UT 4-MT-3046139
Payment Method:	T/T,
Supply Capacity:	1000PCS/MONTHS

Details Information

Product Description

Detail Information

Place of Origin

Germany

Brand Name

Phoenix Contact

Certification

Model Number

UT 4-MT

Mfr. Part No.:

3046139

Color:

Voltage:

500 V

Cross Section:

0.14 Mm² - 6 Mm²

26 - 10

Length:

57.8 Mm

Maximum Operating Temperature:

+ 85 C

Minimum Operating Temperature:

- 60 C

Product Description

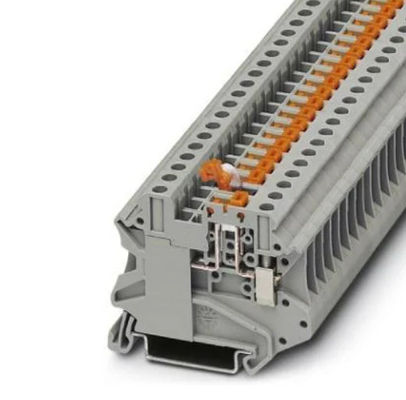

Phoenix Contact Knife Disconnect Terminal Block-UT 4-MT-3046139

Knife disconnect terminal block, nom. voltage: 500 V, nominal current: 20 A, connection method: Screw connection, cross section: 0.14 mm² - 6 mm², AWG: 26 - 10, length: 57.8 mm, width: 6.2 mm, color: gray, mounting: NS 35/7,5, NS 35/15

Product Specifications

Manufacturer:	Phoenix Contact
Product Category:	DIN Rail Terminal Blocks
REACH - SVHC:
Type:	Knife Disconnect Terminal Block
Number of Positions:	2 Position
Current Rating:	20 A
Voltage Rating:	500 V
Wire Gauge Min:	26 AWG
Wire Gauge Max:	10 AWG
Connection Method:	Screw
Color:	Gray
Housing Material:	Polyamide (PA)
Flammability Rating:	UL 94 V-0
Mounting Style:	DIN Rail (NS 35/7.5, NS 35/15)
Length:	57.8 mm
Width:	6.2 mm
Height:	55 mm
Brand:	Phoenix Contact
Maximum Operating Temperature:	+ 85 C
Minimum Operating Temperature:	- 60 C
Product Type:	DIN Rail Terminal Blocks
	50
Subcategory:	Terminal Blocks
Wire Gauge Range:	26 AWG to 10 AWG
Part # Aliases:	UT_4-MT UT4MT
Unit Weight:	0.437397 oz

Phoenix Contact Knife Disconnect Terminal Block-UT 4-MT-3046139 0
