990-04-70-01-00 | Bently Nevada | 990 Vibration Transmitter

990-04-70-01-00 | Bently Nevada | 990 Vibration Transmitter

MOQ: 1
Price: Negotiate
Standard Packaging: Carton
Delivery Period: Negotiate
Bently Nevada 990 Vibration Transmitter 35 Mm DIN Rail Clips
Payment Method: T/T, L/C
Supply Capacity: 100PCS/MONTHS
Detail Information
Place of Origin
USA
Brand Name
Bently Nevada
Model Number
990-04-70-01-00
Condition:
New And Original
Manufacturer:
Bently Nevada
Product No:
990-04-70-01-00
Product Type:
90 Vibration Transmitter
Full-scale Option:
0-4 Mils Pp (0-100 µm Pp)
System Length Option:
7.0 Metres (23.0 Feet)
Mounting Option:
35 Mm DIN Rail Clips
Agency Approval Option:
Not Required
Highlight:

990-04-70-01-00 Bently Nevada Extension Cable

,

Bently Nevada Extension Cable

Product Description

990-04-70-01-00 | Bently Nevada | 990 Vibration Transmitter



Product Description






The 990 Vibration Transmitter is intended primarily for the original equipment manufacturers (OEMs) of centrifugal air compressors or small pumps, motors, or fans who prefer to provide a simple 4 to 20 mA proportional vibration signal as the input to their machinery control system.



The transmitter is a two-wire, loop-powered device that accepts input from our 3300 NSv proximity probe and its matching extension cable (available in 5 m and 7 m system length options).



The transmitter conditions the signal into appropriate peakto-peak vibration amplitude engineering units, and provides this value as a proportional 4 to 20 mA industry-standard signal as the input to the control system where machinery protection alarming and logic occurs†.



The 990 transmitter provides the following notable features:



*Integrated Proximitor Sensor requires no external unit

*Non-isolated "PROX OUT" and "COM" terminals plus a coaxial connector to provide a dynamic vibration and gap voltage signal output for diagnostics.

*Non-interacting zero and span potentiometers under the Transmitter label supports loop adjustment.

*Test Input pin for quick verification of loop signal output, using a function generator as the input.

*A Not OK/Signal Defeat circuit prevents high outputs or false alarms due to a faulty proximity probe or loose connection.

*Choice of DIN-rail clips or bulkhead mounting screws as standard options simplifies mounting.





Product Information




  • Estimated Lead Time : 12 - 16 weeks.

  • Manufacturer : Bently Nevada

  • Product No. : 990-04-70-01-00

  • Product type : 990 Vibration Transmitter

  • Made in U.S.A

  • Full-scale Option : 04 = 0-4 mils pp (0-100 µm pp)

  • System Length Option : 70 = 7.0 metres (23.0 feet)

  • Mounting Option : 01 = 35 mm DIN rail clips

  • Agency Approval Option : 00 = Not required

  • Input : Accepts 1 non-contacting 3300 NSv Proximity Probe and extension cable.

  • Power : Requires +12 to +35 Vdc input at the transmitter terminal.

  • Operating Temperature : -35 ?C to +85 ?C (-31 ?F to +185 ?F)

  • Storage Temperature : -51 ?C to +100 ?C (-60 ?F to +212 ?F)

  • Weight : 0.54 Kg

  • Shipping weight : 2 Kg

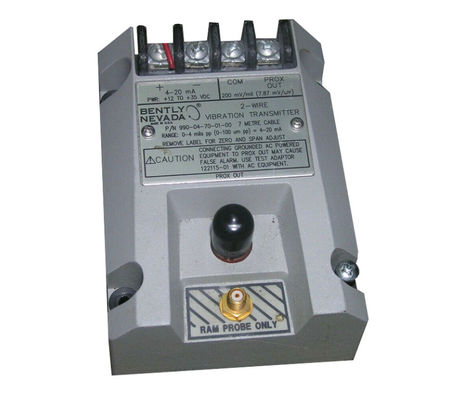

Product Photo
