P51530-T1 Georg Fischer Piping System with Natural PVDF Pin Material

P51530-T1 Georg Fischer Piping System with Natural PVDF Pin Material

MOQ: 1
Price: Negotiate
Standard Packaging: Carton
Delivery Period: 3-5DAYS
Signet 515 Rotor-X Paddlewheel Flow Sensors Ordering code 198 801 664
Payment Method: T/T, L/C
Supply Capacity: 100PCS/MONTHS
Detail Information
Place of Origin
USA
Brand Name
Georg Fischer
Model Number
P51530-T1
Condition:
New And Original
Manufacturer:
Georg Fischer
Product No:
P51530-T1
Ordering Code:
198 801 664
Pin Material:
Natural PVDF
Body:
Natural PVDF
Highlight:

Original P51530-T1

,

Natural PVDF Pin Material P51530-T1

Product Description

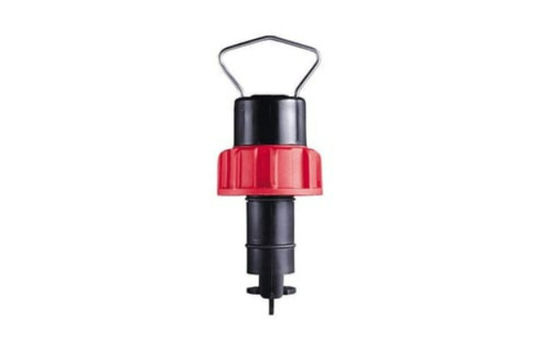

GF Signet P51530-T1 Signet 515 Rotor-X Paddlewheel Flow Sensors





Product Description






The Model 515 sensors are offered in a variety of materials for a wide range of pipe sizes and insertion configurations. The many material choices including PP and PVDF make this model highly versatile and chemically compatible to many liquid process solutions. Sensors can be installed in up to DN900 (36 in.) pipes using Signet’s comprehensive line of custom fittings.



These custom fittings, which include tees, saddles, and weldolets, seat the sensor to the proper insertion depth into the process flow. The sensors are also offered in configurations for wet-tap installation requirements.





Product Information




  • Body - Natural PVDF

  • Rotor - Natural PVDF

  • Pin Material - Natural PVDF

  • Operating range 0.3 to 6 m/s (1 to 20 ft/s)

  • Wide turndown ratio of 20:1

  • Highly repeatable output

  • Simple, economical design

  • Installs into pipe sizes DN15 to DN900 (½ to 36 in.)

  • Self-powered/no external power required

  • Test certificate included for -X0, -X1

  • Chemically-resistant materials



General
Operating Range 0.3 to 6 m/s 1 to 20 ft/s
Pipe Size Range DN15 to DN900 ½ to 36 in.
Linearity ±1% of max. range @ 25 °C (77 °F)
Repeatability ±0.5% of max. range @ 25 °C (77 °F)
Min. Reynolds Number Required 4500
Wetted Materials
Sensor Body Glass-filled PP (black) or PVDF (natural)
O-rings FPM (std), optional EPR (EPDM) or FFPM
Rotor Pin Titanium, Hastelloy-C or PVDF; optional Ceramic, Tantalum, or Stainless Steel
Rotor Black PVDF or Natural PVDF; optional ETFE, with or without carbon fi ber reinforced
PTFE sleeve
Electrical
Frequency 19.7 Hz per m/s nominal 6 Hz per ft/s sinusoidal
Amplitude 3.3 V p/p per m/s nominal 1 V p/p per ft/s
Source Impedance 8 KΩ
Cable Type 2-conductor twisted pair with shield, 22 AWG
Cable Length 7.6 m (25 ft) can be extended up to 60 m (200 ft) maximum







Product Photo






P51530-T1 Georg Fischer Piping System with Natural PVDF Pin Material 0

P51530-T1 Georg Fischer Piping System with Natural PVDF Pin Material 1
