3-9950-1 LCD Display DC GF Signet Advanced Solution for Industrial

3-9950-1 LCD Display DC GF Signet Advanced Solution for Industrial

MOQ: 1
Price: Negotiate
Standard Packaging: Carton
Delivery Period: 3-5DAYS
AC or DC Dual Channel Transmitter Channel Multi-Parameter Inputs
Payment Method: T/T, L/C
Supply Capacity: 100PCS/MONTHS
Detail Information
Place of Origin
USA
Brand Name
Georg Fischer
Model Number
3-9950-1
Condition:
New And Original
Manufacturer:
Georg Fischer
Product No:
3-9950-1
Power:
DC
Case Material:
PBT
Display:
Dot Matrix, LCD
LCD Contrast:
5 Settings
Update Rate:
1s
Highlight:

LCD Display DC GF Signet

,

GF Signet 3-9950-1

,

Industrial GF Signet 3-9950-1

Product Description

GF Signet 3-9950-1 AC or DC Dual Channel Transmitter





Product Description






The 9950 Transmitter is a two channel controller that can support two sensors of same or diff erent types in one instrument. The sensor types supported by the 9950 are Signet Flow, pH/ORP, Conductivity/Resistivity, Salinity, Temperature, Pressure, Level, Dissolved Oxygen, and devices that transmit a 4 to 20 mA signal with the use of the 8058 iGo® Signal Converter.



The 9950 includes advanced features such as derived functions, advanced multiple relay modes, and timer based relay functions. Derived functions allows for the control of a relay or current loop with the sum, delta (diff erence), or ratio of two measurements, for example delta pressure and delta temperature. Multiple relay modes allow up to three signals to be used for the control of a single relay.


This can be any combination of analog and binary inputs. The timer relay modes allow relay to be activated on arepeating basis from every minute to once every 30 days. Weekday timer mode allows a relay to be turned on on a specifi c day or days of the week at a specifi c time.
The 3-9950.393-3 Relay Module includes the ability to interface up to four binary inputs. The binary inputs are compatible with either open collector or mechanical contacts. The binary inputs can supply power to the four inputs or accepts powered outputs from external devices. These inputs can be used with level switches,fl ow switches, pressure switches or other devices. The inputs can be used to directly control the relays of the 9950 or can be used in combination with the measurement readings for advanced control of your process.





Product Information






  • DC Power

  • One instrument for multiple sensor types

  • Two different sensor types can be combined in one instrument

  • Configurable display

  • Derived measurements

  • Advanced boolean logic

  • Optional modules can be added for additional capabilities

  • USB port for field upgrades using standard USB flash drives



General
Input Channels Two frequency or S3L inputs
Enclosure and Display
Case Material PBT
Window Shatter-resistant glass
Keypad 4 buttons, injection-molded silicone rubber seal
Display Dot matrix, LCD
Indicators Two horizontal digital bar graphs, four LED relay status indicators
Update Rate 1 s
LCD Contrast 5 settings
Size ¼ DIN
Mounting
Panel ¼ DIN, ribbed on four sides for panel mounting clip inside panel, silicon gasket included
Wall Wall Mount enclosure (sold as an accessory)









Product Photo

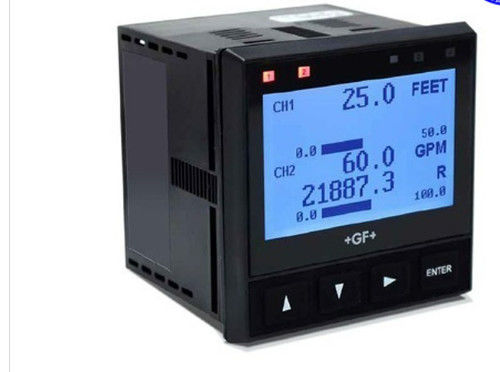

3-9950-1 LCD Display DC GF Signet  Advanced Solution for Industrial 0
