3-9900-1BC GF Signet Batch Controller System Batch Controller

3-9900-1BC GF Signet Batch Controller System Batch Controller

MOQ: 1
Price: Negotiate
Standard Packaging: Carton
Delivery Period: 3-5DAYS
3-9900-1BC Batch Controller System Water Batch Controller
Payment Method: T/T, L/C
Supply Capacity: 100PCS/MONTHS
Detail Information
Place of Origin
USA
Brand Name
Georg Fischer
Model Number
3-9900-1BC
Condition:
New And Original
Product Type:
Sensor
Brand:
GF Signet
Factory Warranty:
1 Year
Code:
159 001 770
Description:
Batch Controller System
Product Description

3-9900-1BC GF Signet Batch Controller System Batch Controller



Product Description






GF Signet is offering their 3-9900-1BC Batch Controller that is used when a Batch Module and Relay Module are installed.





Product Information










  • Large auto-sensing backlit display with "at-a-glance" visibility

  • "Dial-type" digital bar graph

  • Intuitive and "user-friendly" interface consistent with legacy Signet ProPoint® and ProcessPro® devices

  • Optional Field upgradable relays

  • Selectable error mode for current outputs, 3.6mA or 22mA

  • 4 to 20 mA input (with optional 8058 Signal Converter)

  • Warning LED indicator

  • Custom 13-character label capabilities for the channel type

  • Factory reset capability

General

Input Channels

One

Input Types

Digital (S3L)

Serial ASCII, TTL level, 9600 bps



Frequency

Range

0.5 to 1500 Hz



Accuracy

0.5% of reading

Measurement Types

Flow, pH/ORP, Conductivity/Resistivity, Salinity, Pressure, Temperature, Level, Dissolved Oxygen, Batch or user-defined (via 8058)

Enclosure and Display

Case Material

PBT

Window

Shatter-resistant glass

Keypad

4 buttons, injection-molded silicone rubber seal

Display

Backlit, 7 and 14-segment

Update Rate

1 s

LCD Contrast

5 settings

Indicators

“Dial-type” digital bar graph. LEDs for Open Collector, Relays and Warning Indicator

Enclosure Size

¼ DIN

Mounting

9900-1P





Panel

¼ DIN, ribbed on four sides for panel mounting clip inside panel, silicon gasket included. Optional rear enclosure with flat cover available for waterproof protection when installed inside a panel.

Wall

Options include 9900-1P installed in pre-wired NEMA enclosure or inside of rear enclosure with hinged cover.

Pipe

Optional Rear Enclosure with hinged cover and 9900-1P for pipe mount installation

Mounting

9900-1



Field (Integral)

Options include yellow universal or integral kits for installation with sensor

Display Ranges

pH

0.00 to 15.00 pH

pH Temperature

-39.99 °C to 149.99 °C

-40 °F to 302 °F

ORP

-1999 to +1999 mV

Flow Rate

-9999 to 99999 units per second, minute, hour or day

Totalizer

0.00 to 99999999 units

Conductivity

0.0000 to 99999 μS, mS, PPM and PPB (TDS), kΩ, MΩ

Conductivity Temperature

-100 °C to 250 °C

–148 °F to 350 °F (application and sensor dependent)

Temperature

-99 °C to 350 °C

–99 °F to 350 °F

Pressure

-40 to 1000 psi

Level

-9999 to 99999 m, cm, ft, in, %

Volume

0 to 99999 cm3, m3, in3, ft3, gal, L, lb, kg, %

Salinity

0 to 99.97 PPT

Dissolved Oxygen

PPM 0-50, % SAT 0-200, 0 to 999.9 TORR

Dissolved Oxygen
Temperature

-99 °C to 350 °C

–99 °F to 350 °F

Environmental

Ambient Operating Temperature

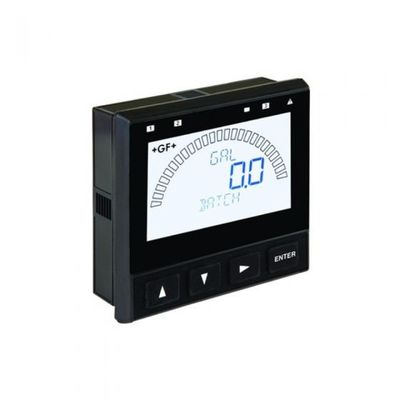

Product Photo




3-9900-1BC GF Signet Batch Controller System Batch Controller 0
