3-9900-1 GF Signet Georg Fischer Piping System Field Mount Transmitter

3-9900-1 GF Signet Georg Fischer Piping System Field Mount Transmitter

MOQ: 1
Price: Negotiate
Standard Packaging: Carton
Delivery Period: 3-5DAYS
Payment Method: T/T, L/C
Supply Capacity: 100PCS/MONTHS
Detail Information
Place of Origin
USA
Brand Name
Georg Fischer
Model Number
3-9900-1
Condition:
New And Original
Product Type:
Sensor
Brand:
GF Signet
Factory Warranty:
1 Year
Output:
One 4-20mA
Communication Interface:
Analog 4-20 MA
Description:
9900 Field Mount
Code:
159 001 696
Product Description

GF Signet 3-9900-1 Field Mount Transmitter



Product Description






GF Signet is offering their 3-9900-1 Transmitter with a field mount that can run on 12 to 32 power (24 VDC nominal).





Product Information




  • Large auto-sensing backlit display with "at-a-glance" visibility
  • "Dial-type" digital bar graph
  • Intuitive and "user-friendly" interface consistent with legacy Signet ProPoint® and ProcessPro® devices
  • Optional Field upgradable relays
  • Selectable error mode for current outputs, 3.6mA or 22mA
  • 4 to 20 mA input (with optional 8058 Signal Converter)
  • Warning LED indicator
  • Custom 13-character label capabilities for the channel type
  • Factory reset capability



General
Input Channels One
Input Types Digital (S3L) Serial ASCII, TTL level, 9600 bps
  Frequency Range 0.5 to 1500 Hz
  Accuracy 0.5% of reading
Measurement Types Flow, pH/ORP, Conductivity/Resistivity, Salinity, Pressure, Temperature, Level, Dissolved Oxygen, Batch or user-defined (via 8058)
Enclosure and Display
Case Material PBT
Window Shatter-resistant glass
Keypad 4 buttons, injection-molded silicone rubber seal
Display Backlit, 7 and 14-segment
Update Rate 1 s
LCD Contrast 5 settings
Indicators “Dial-type” digital bar graph. LEDs for Open Collector, Relays and Warning Indicator
Enclosure Size ¼ DIN
Mounting 9900-1P
  Panel ¼ DIN, ribbed on four sides for panel mounting clip inside panel, silicon gasket included. Optional rear enclosure with flat cover available for waterproof protection when installed inside a panel.
Wall Options include 9900-1P installed in pre-wired NEMA enclosure or inside of rear enclosure with hinged cover.
Pipe Optional Rear Enclosure with hinged cover and 9900-1P for pipe mount installation
Mounting 9900-1
Field (Integral)

Options include yellow universal or integral kits for installation with sensor

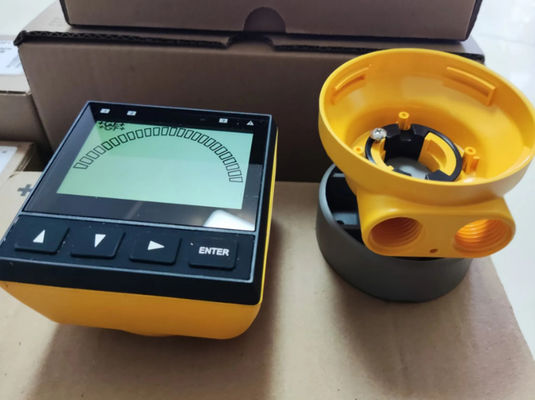

Product Photo






3-9900-1 GF Signet Georg Fischer Piping System Field Mount Transmitter 0





More Products






3-2350-1 3-3719-11 3-2551-T0-11
3-8450-1P 3-3719-21 3-2551-T1-11
3-8550-2 3-2450-7U 3-2551-P1-12
3-8750-2 3-2450-7U 3-2551-P2-12
3-2819-S1 3-2450-7L 3-2250-11U
3-2820-S1 3-2450-7H 3-2551-P1-22
3-2821-S1 3-2450-7H 3-2551-P0-42
3-8050 3-2350-3 3-2551-P0-42
3-8050 3-2839-1 3-2551-P0-42
3-8052 3-8150-P0 3-2537-5C-P0
3-8350-2 3-2774-1 3-2537-6C-P1
3-2820-T1 P525-1S 3-2537-6C-T0
3-2450-3U P525-2S 3-2537-6C-T0
3-2450-3U P525-2S 3-2850-51-40
3-2750-1 P525-2S 3-2850-52-39
3-8050-1 3-8058-1 3-2850-52-39
3-8050-2 3-2551-P0-11 3-2850-52-40
3-2759 3-2551-P1-11 5541-4184
3-2759.391 3-2551-P1-11 3-2850-61
3-2840-1 3-2551-P2-11 3-2850-61
