3-2774-1 Gf Signet In-Line Dryloc Ph Electrode, Flat Tip

3-2774-1 Gf Signet In-Line Dryloc Ph Electrode, Flat Tip

MOQ: 1
Price: Negotiate
Standard Packaging: Carton
Delivery Period: 3-5DAYS
Flat Tip Threaded DryLoc pH Electrode Signet Models 2750 and 2760
Payment Method: T/T, L/C
Supply Capacity: 100PCS/MONTHS
Detail Information
Place of Origin
USA
Brand Name
Georg Fischer
Model Number
3-2774-1
Condition:
New And Original
Product Type:
Sensor
Brand:
GF Signet
Factory Warranty:
1 Year
Part No.:
3-2774-1
Temperature Element:
PT1000 RTD
Product Description

3-2774-1 Gf Signet In-Line Dryloc Ph Electrode, Flat Tip



Product Description






The Signet 2774 - 2777 pH and ORP Electrodes feature a unique foulproof DryLoc® connector with goldplated contacts designed specifically for use with the Signet 2750 and 2760 preamplifiers, sensor electronics, and connectors.



These dependable and highly responsive electrodes feature a PTFE double reference junction and a large reference chamber that combine to extend the servicelife. Embedded positioning of the temperature element in the pH/ORP sensing tip allows the temperature response to be quick and accurate. The electrodes are offered with either flat or bulb style sensing elements. The flat versions allow sediment and particles to sweep past the measurement surface, minimizing risks of abrasion, breakage and coating.



The bulb versions can be used for general-purpose applications. Due to the specially designed chambers which keep electrolyte in place, all versions can be installed at any angle, even inverted.





Product Information










  • Flat Tip Design

  • Temperature Element - PT1000 RTD

  • Patented DryLoc connector with gold-plated contacts

  • Special design allows mounting at any angle

  • Quick temperature response

  • High temperature versions available

  • Easy sensor replacement using DryLoc electrode connector

  • Mounts into standard 3/4 inch threads

  • Compatible with all pH/ORP and other suppliers’ instruments

General

Compatibility

Signet Models 2750 and 2760

Operating Range

2774/2776

0 to 14 pH

2775/2777

±2000 mV (ORP)

Process Connection

¾ in., for use in reducing tees up to 4 in.

Reference

Electrolyte

KNO3/KCl polyacrylamide gel

Element

Ag/AgCl

Wetted Materials

Body

Ryton®

Reference Junctions

PTFE

Sensing Surface

pH

Glass membrane



ORP

Platinum

O-rings

FKM

Max. Temperature/Pressure Rating

Operating Temperature

0 °C to 85 °C

32 °F to 185 °F

Max. Operating Pressure

6.9 bar

100 psi

Higher temperature and pressure sensors are available upon request.

Recommended Storage Temperature



0 °C to 50 °C

32 °F to 122 °F

The electrode glass will shatter if shipped or stored at temperature below 0 °C (32 °F).

The performance life of the electrode will shorten if stored at temperatures above 50 °C (122 °F).

Mounting

In-line/Vertical Mounting

Use the electrodes ¾ inch threads to install into pipe fitting. Electrode can be mounted at any angle.

Submersible Mounting

Use threads on Model 2750 or 2760; requires ¾ inch NPT or ISO 7/1-R 3/4 male threaded extension.

Temperature Sensor

pH

3 KΩ or PT1000 RTD



ORP

none

Shipping Weight



0.25 kg

0.55 lb

Standards & Approvals



Manufactured under ISO 9001 for Quality

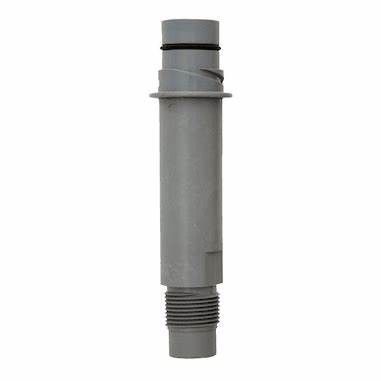

Product Photo








3-2774-1 Gf Signet  In-Line Dryloc Ph Electrode, Flat Tip 0
