3-2350-3 GF Signet Temperature Sensor, 15'' Cable

3-2350-3 GF Signet Temperature Sensor, 15'' Cable

MOQ: 1
Price: Negotiate
Standard Packaging: Carton
Delivery Period: 3-5DAYS
Gf Signet 3-2350-3 Temperature Sensor, 15'' Cable 4 To 20 Ma Or Digital (S3l) Output
Payment Method: T/T, L/C
Supply Capacity: 100PCS/MONTHS
Detail Information
Place of Origin
USA
Brand Name
Georg Fischer
Model Number
3-2350-3
Condition:
New And Original
Product Type:
Sensor
Brand:
GF Signet
Factory Warranty:
1 Year
Part No.:
3-2350-3
Output:
4 To 20 MA Or Digital (S3L)
Product Description

3-2350-3 GF Signet Temperature Sensor, 15'' Cable



Product Description






The type 2350 Temperature Sensor has a one piece injection molded PVDF body that is ideal for use in high purity applications. It also outlasts metal sensors in aggressive liquids and eliminates the need for costly custom thermowells.



These sensors are available with a proprietary digital (S3 L) output or field-scaleable 4 to 20 mA output. Dual threaded ends (¾ in. NPT) allow submersion in process vessels, or in-line installation with conduit connection. An integral adapter kit (sold separately) may be used to create a compact assembly with field mount versions of the type 9900 Transmitter.





Product Information








  • 4 to 20 mA output or digital (S3L) output

  • One-piece injection-molded SYGEF PVDF body

  • PT1000 Platinum RTD in extended tip for quick response

  • Threaded for in-line or submersible installation

  • Standard 3/4" NPT process connection

General

Output

Digital (S3L) output or 4 to 20 mA

Accuracy

±0.5 °C (±0.9 °F)

Response Time, t

10 secs.

Repeatability

±0.1 °C (±0.2 °F)

Resolution

0.01 °C (0.02 °F)

Sensing-End Connection

3/4 in. NPT male thread

Cable-End Connection

3/4 in. NPT male thread

Wetted Materials

Sensor Housing

PVDF

Electrical

Power Requirements





Digital (S3L)

5 to 6.5 VDC ±10%, < 1 .5 mA

4 to 20 mA

12 to 24 VDC ±10%, regulated

Cable Length

4.6 m (15 ft) cable length can also be extended up to 121 m (400 ft)

Cable Type

PVC jacketed, 3-conductor with shield 22 AWG, Blk/Red/White/Shld

Digital (S3L) Output

Serial ASCII, TTL Level 9600 bps.

Reverse polarity and short circuit protected.

4 to 20 mA Output



Accuracy

±32 μA

Resolution

< 5 μA

Span

4 to 20 mA factory calibrated 0 °C to 100 °C (32 °F to 212 °F)

Max. Loop Impedance

50 Ω @ 12 V

325 Ω @ 18 V

600 Ω @ 24 V

Update Rate

< 100 ms

Max. Temperature/Pressure Rating

Operating Temperature



In-line Mounting

-10 °C @ 16 bar to 100 °C @ 7.5 bar

14 °F @ 232 psi to 212 °F @ 108 psi

Submersible Mounting

-10 °C @ 16 bar to 85 °C @ 7.5 bar

14 °F @ 232 psi to 185 °F @ 108 psi

Storage Temperature

-55 °C to 100 °C

-67 °F to 212 °F

Relative Humidity

0 to 95% non-condensing

Shipping Weight



0.22 kg

0.5 lb

Standards and Approvals



CE, FCC

RoHS compliant, China RoHS

Manufactured under ISO 9001 for Quality and ISO 14001 for Environmental Management and OHSAS 18001 for Occupational Health and Safety

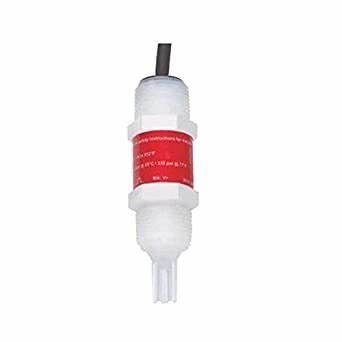

Product Photo








3-2350-3 GF Signet Temperature Sensor, 15'' Cable 0
