3- 2839-1V(D) to 3- 2842-1V(D) GF Signet Conductivity Electrodes

3- 2839-1V(D) to 3- 2842-1V(D) GF Signet Conductivity Electrodes

MOQ: 1
Price: Negotiate
Standard Packaging: Carton
Delivery Period: 3-5DAYS
3-2841-1V - GF Signet 2839-1V to 2842-1V Conductivity Electrodes
Payment Method: T/T, L/C
Supply Capacity: 100PCS/MONTHS
Detail Information
Place of Origin
USA
Brand Name
Georg Fischer
Model Number
3-2841-1V
Condition:
New And Original
Product Type:
Sensor
Brand:
GF Signet
Factory Warranty:
1 Year
Cell Constant:
1.0 Cm-1
Connection:
Dual Threaded
Thread Size:
3/4 In NPT
Cable Length:
4.6 M (15 Ft)
Product Description

3- 2839-1V(D) to 3- 2842-1V(D) GF Signet Conductivity Electrodes



Product Description






The Signet 2839-1V(D) to 2842-1V(D) Conductivity/ Resistivity Electrodes are available in four cell constants from 0.01 to 10.0 cm-1, and are suitable for a wide variety of applications from high purity water quality monitoring to weak acids and bases. 316 SS electrode surface finishes are controlled in a precision bead blasting operation to ensure measurement accuracy and repeatability.



The PVDF insulator and process connections are injection over-molded to minimize variance between electrodes. Double threaded connections in either ¾ in. NPT or ISO 7/1-R 3/4 enable quick and easy installation in submersible or in-line configurations. Transmitter integral mounting kit and junction boxes are available as accessories.



A Certificate of Calibration is included with all 28391-V(D) to 2842-1V(D) Conductivity/Resistivity Electrodes. The electrodes are calibrated to meet ± 2% accuracy. Electrodes can be shipped back to the GF Signet factory for recertification.





Product Information






  • Water Treatment & Water Quality Monitoring

  • Reverse Osmosis

  • Deionization

  • Cooling tower and Boiler Protection

  • Distillation

  • Desalination

  • Demineralizer

  • Semiconductor

  • Aquatic Animal Life Support Systems

General

Operating Range



2839

0.055 to 100 μS

0.02 to 50 ppm

18.2 MΩ to 10 KΩ

2840

1 to 1,000 μS

0.5 to 500 ppm

1 MΩ to 1 KΩ

2841

10 to 10,000 μS

5 to 5,000 ppm

2842

100 to 200,000 μS

50 to 100,000 ppm

Cell Constant Accuracy

±2% when the information provided on the certificate of calibration is entered into the transmitter/meter or when wet calibrated with a traceable standard.

Dual-Threaded
Process Connection

-1V versions: 3/4 in. NPT

-1VD versions: ISO 7/1-R 3/4

Cable Length
(use for the 2839, 40 ,41 and 42)

standard

4.6 m (15 ft)

maximum

30 m (100 ft) all sensors when used with the 9900, 9950 and direct conductivity/resistivity modules

0.01 cells

4.6 m (15 ft) when used with 2850*

Temperature Element

Pt1000

Temp. Response, t



0.01 cell

5 sec.

0.10 cell

10 sec.

1.0 cell

20 sec.

10.0 cell

30 sec.

Temperature Accuracy

±0.5 °C

±0.9 °F

Wetted Materials

Internal O-ring (2841 and 2842)

FKM

Insulator Material

PVDF

Electrode Material

316 SS

Threaded Process Connection

PVDF

Max. Temperature/Pressure Rating



131 °C @ 2.76 bar

268 °F @ 40 psi

Storage Temperature

-20 °C to 131 °C

-4 °F to 268 °F

Shipping Weight

2839

0.34 kg

0.74 lb

2840, 2841, 2842

0.30 kg

0.66 lb

Standards and Approvals



RoHS compliant, China RoHS

Manufactured under ISO 9001 for Quality and ISO 14001 for Environmental Management and OHSAS 18001 for Occupational Health and Safety

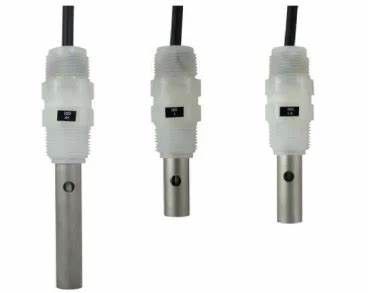

Product Photo
