3-2450-3L GF Piping Systems 159000682 2450 Pressure Sensor, 50 psi

3-2450-3L GF Piping Systems 159000682 2450 Pressure Sensor, 50 psi

MOQ: 1
Price: Negotiate
Standard Packaging: Carton
Delivery Period: 3-5DAYS
Pressure Sensor Output, Process Connection and Cable Length
Payment Method: T/T, L/C
Supply Capacity: 100PCS/MONTHS
Detail Information
Place of Origin
USA
Brand Name
Georg Fischer
Model Number
3-2450-3L
Condition:
New And Original
Product Type:
Sensor
Brand:
GF Signet
Factory Warranty:
1 Year
Output:
Digital (S3L) Or 4 To 20 MA
Part No.:
3-2450-3L
Product Description

3-2450-3L GF Piping Systems 159000682 2450 Pressure Sensor, 50 psi



Product Description






The Signet 2450 Pressure Sensor has a one-piece injection-molded PVDF body and ceramic diaphragm for superior compatibility in corrosive liquids. Three pressure range versions allow for optimal resolution matched to your sensing needs. Solid state circuitry eliminates drift (no internal potentiometers.)



Built-in temperature compensation provides outstanding accuracy over wide temperature ranges.

These sensors are available with a proprietary digital output (S3L) or field-scalable 4 to 20 mA output. Dual-threaded ends allow submersion in process vessels, or in-line installation with conduit connection. Integral adapters (sold separately) may be used to create a compact assembly with a field mount version of the 8450 Pressure Transmitter or 9900 Transmitter.





Product Information










  • Test certificate included

  • 4 to 20 mA output or digital (S3L) output

  • 1/2 in. male union process connection

  • One-piece injection-molded PVDF body

  • Flush ceramic diaphragm

  • Easy installation

  • Choice of three pressure ranges

  • Pressure or level measurement

Output, Process Connection and Cable Length

Digital (S3 L), ½ in. male union, 4.6 m (15 ft.) cable

Operating Pressure Range

0 to 50 psi

Output

Digital (S3L) or 4 to 20 mA

Accuracy For all pressure ranges

±1% of full scale @ 25 °C

Response Time

< 100 ms

Sensing-End Connection

½ in. union male thread (requires end connector and union nut) (See installation section for end connector and nut recommendation)

Cable-end connection

¾ in. NPT male thread

Sensor Housing

PVDF

Diaphragm

Ceramic

Diaphragm Seal

FPM

Power Requirements Digital (S3L)

5 to 6.5 VDC < 1.5 mA

Power Requirements 4 to 20 mA

12 to 24 VDC ±10%, regulated

Cable Length

4.6 m (15 ft)

Cable Type

3 cond. + shield, 22 AWG, PVC jacketed, Blk/Red/White/Shld

Digital (S3L) Output

Serial ASCII, TTL level 9600 bps. Reverse polarity and short circuit protected.

4 to 20 mA Output Accuracy

±32 μA

4 to 20 mA Output Resolution

< 5 μA

4 to 20 mA Output Span

4 to 20 mA factory calibrated to operating ranges shown below

4 to 20 mA Output

100 Ω @ 12 V / 325 Ω @ 18 V / 600 Ω @ 24 V

Operating Temperature

-15 to 85 °C (5 to 185 °F)

Storage Temperature

-20 to 100 °C (-4 to 212 °F)

Operating Pressure -XU

0 to 0.7 bar (0 to 10 psig)

Operating Pressure -XL

0 to 3.4 bar (0 to 50 psig)

Operating Pressure -XH

0 to 17 bar (0 to 250 psig)

Burst Pressure

82 bar (1,200 psig)

Series

2450

Type

Pressure Sensor

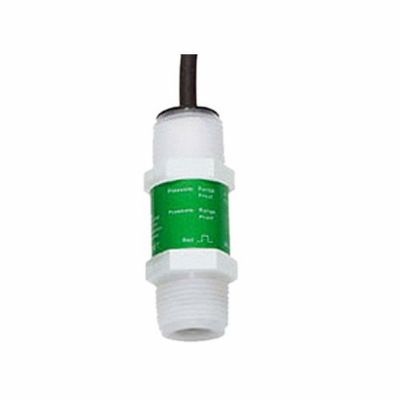

Product Photo








3-2450-3L GF Piping Systems 159000682 2450 Pressure Sensor, 50 psi 0
