Product Description
The Direct Conductivity/Resistivity (Cond/Res) Module interfaces Signet 2819-2823 and 2839-2842 Conductivity electrodes directly to the 9900. Conductivity/Resistivity and Salinity measurements may also be performed via the 2850 Sensor Electronics connected through the 9900 Digital (S3L) inputs.
Product Information
Module Installation:
• Signet Conductivity Module cannot operate when using loop power and requires an external DC power supply to be used with the 9900 Transmitter.
• If the 9900-1P Base Unit will be mounted in a panel, plug-in modules may be installed either before or after the base unit is mounted.
• If the 9900-1P Base Unit will be mounted using the Wall Mount Accessory Kit(3-9900.392), install plug-in modules first.
1. Remove power from the 9900.
2. Carefully align pins and connectors. Do not bend connecting pins.
3. Push module fi rmly into place, then attach with screw
Wiring Tips:
• Terminals accept 16 to 28 AWG wire.
• Sensor cable length can be extended to 30 m (100 ft). Except 2819 and 2839, limited to 4.6 m (15 ft).
• Do not allow any AC leads that may be connected to the internal relays to come in contact with low voltage wiring.
General | |||
Input Channels | One | ||
Input Types | Digital (S3L) | Serial ASCII, TTL level, 9600 bps | |
Frequency | Range | 0.5 to 1500 Hz | |
Accuracy | 0.5% of reading | ||
Measurement Types | Flow, pH/ORP, Conductivity/Resistivity, Salinity, Pressure, Temperature, Level, Dissolved Oxygen, Batch or user-defined (via 8058) | ||
Enclosure and Display | |||
Case Material | PBT | ||
Window | Shatter-resistant glass | ||
Keypad | 4 buttons, injection-molded silicone rubber seal | ||
Display | Backlit, 7 and 14-segment | ||
Update Rate | 1 s | ||
LCD Contrast | 5 settings | ||
Indicators | “Dial-type” digital bar graph. LEDs for Open Collector, Relays and Warning Indicator | ||
Enclosure Size | ¼ DIN | ||
Mounting | 9900-1P | ||
Panel | ¼ DIN, ribbed on four sides for panel mounting clip inside panel, silicon gasket included. Optional rear enclosure with flat cover available for waterproof protection when installed inside a panel. | ||
Wall | Options include 9900-1P installed in pre-wired NEMA enclosure or inside of rear enclosure with hinged cover. | ||
Pipe | Optional Rear Enclosure with hinged cover and 9900-1P for pipe mount installation | ||
Mounting | 9900-1 | ||
Field (Integral) | Options include yellow universal or integral kits for installation with sensor |

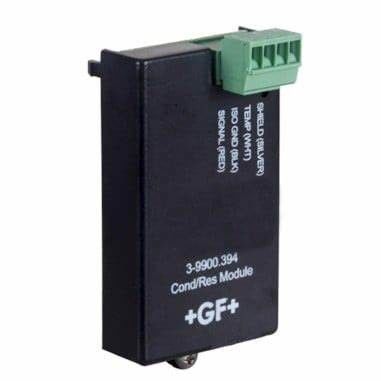

Product Photo
