3-2840-1V GF Signet Conductivity/Resistivity Electrode, 0.1 Cell Constant

3-2840-1V GF Signet Conductivity/Resistivity Electrode, 0.1 Cell Constant

MOQ: 1
Price: Negotiate
Standard Packaging: Carton
Delivery Period: 3-5DAYS
OEM Georg Fischer Piping System Conductivity / Resistivity Electrode
Payment Method: T/T, L/C
Supply Capacity: 100PCS/MONTHS
Detail Information
Place of Origin
USA
Brand Name
Georg Fischer
Model Number
3-2840-1V
Condition:
New And Original
Manufacturer:
Georg Fischer
Part Number:
3-2840-1V
Ordering Code:
159 001 812
Cable Length:
4.6 M (15 Ft)
Process Con-nection:
Dual Threaded
Product Description

3-2840-1V GF Signet Conductivity/Resistivity Electrode, 0.1 Cell Constant



Product Description






Signet 2839-2842 Conductivity/Resistivity Electrodes are suitable for a wide variety of applications ranging from high purity water quality monitoring to weak acids and bases. The PEEK insulator and process connections are injection over-molded to minimize variance between electrodes.





Product Information




  • - Compact Electrode Length fo Easy Inline Installation
  • - Triple Oriface Flow-Through Design Reduces Clogging and Bubble Entrapment
  • - 316SS Electrodes with Injection Molded POOK Process
  • - In-Line or submersible mounting
  • - Cell Constants may be traceable to NIST and certified to Within +/-1% to meet USP requirements
  • - 3/4" NPT Connection Size
  • - 15' Cord Attached

General

Operating Range



2839

0.055 to 100 μS

0.02 to 50 ppm

18.2 MΩ to 10 KΩ

2840

1 to 1,000 μS

0.5 to 500 ppm

1 MΩ to 1 KΩ

2841

10 to 10,000 μS

5 to 5,000 ppm

2842

100 to 200,000 μS

50 to 100,000 ppm

Cell Constant Accuracy

±2% when the information provided on the certificate of calibration is entered into the transmitter/meter or when wet calibrated with a traceable standard.

Dual-Threaded
Process Connection

-1V versions: 3/4 in. NPT

-1VD versions: ISO 7/1-R 3/4

Cable Length
(use for the 2839, 40 ,41 and 42)

standard

4.6 m (15 ft)

maximum

30 m (100 ft) all sensors when used with the 9900, 9950 and direct conductivity/resistivity modules

0.01 cells

4.6 m (15 ft) when used with 2850*

Temperature Element

Pt1000

Temp. Response, t



0.01 cell

5 sec.

0.10 cell

10 sec.

1.0 cell

20 sec.

10.0 cell

30 sec.

Temperature Accuracy

±0.5 °C

±0.9 °F

Wetted Materials

Internal O-ring (2841 and 2842)

FKM

Insulator Material

PVDF

Electrode Material

316 SS

Threaded Process Connection

PVDF

Max. Temperature/Pressure Rating



131 °C @ 2.76 bar

268 °F @ 40 psi

Storage Temperature

-20 °C to 131 °C

-4 °F to 268 °F

Shipping Weight

2839

0.34 kg

0.74 lb

2840, 2841, 2842

0.30 kg

0.66 lb

Standards and Approvals



RoHS compliant, China RoHS

Manufactured under ISO 9001 for Quality and ISO 14001 for Environmental Management and OHSAS 18001 for Occupational Health and Safety

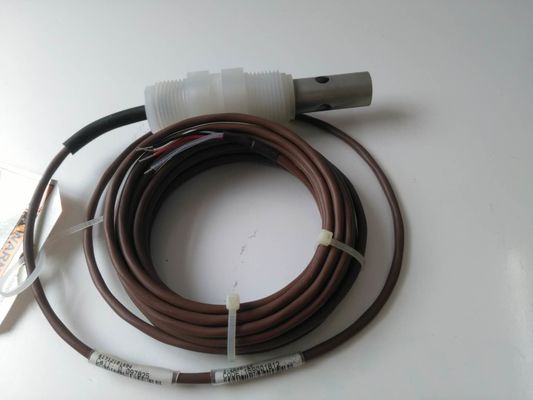

Product Photo








3-2840-1V  GF Signet Conductivity/Resistivity Electrode, 0.1 Cell Constant 0
