2818-2823 Georg Fischer Piping System +GF+ Signet Electrodes

2818-2823 Georg Fischer Piping System +GF+ Signet Electrodes

MOQ: 1
Price: $100——$500
Standard Packaging: 30*50*80
Delivery Period: 3-5DAYS
Georg Fischer Signet 2818-2823 Series Conductivity Sensor Standard Process Connections
Payment Method: T/T, L/C
Supply Capacity: 100PCS/MONTHS
Detail Information
Place of Origin
USA
Brand Name
Georg Fischer
Model Number
2818-2823
Condition:
New And Original
Series:
2818-2823
Sensor Material And Mounting:
316 SS
Insertion Into Tee Size:
1 To 1.5 In
Compliance:
RoHS,China RoHS
Operating Range:
1 To µ1000
Product Description

2818-2823 Georg Fischer Piping System +GF+ Signet Electrodes



Product Description






Signet 2818-2823 Conductivity/Resistivity Electrodes are designed to provide versatile installation and accurate sensing across a very broad dynamic range. These electrodes are built with a controlled surface fi nish to ensure accuracy and repeatability. The standard electrode is constructed 316 SS or Titanium, but there are other materials available for maximum chemical compatibility. Reversible threads or sanitary fl anges allow for maximum installation versatility.



Sanitary fl ange versions are available with an optional NIST Traceability Certifi cate to meet USP requirements. Coupled with Signet patented measuring circuitry, a three decade measurement range is achieved without the need for troublesome electrode platinization. A platinum RTD (PT1000) located within the electrode allows optimal temperature sensing





Product Information






• Standard process connections

• ¾” NPT Polypro

• Tri-clamp 1½”, 2”

• Opt. 1/2” NPT 316 SS

• 316 SS or Titanium standard electrode

• Alternative electrode materials available

• Hastelloy-C

• Monel

• In-line or submersible mounting

• NIST traceable certifi ed cells ±1% meet USP requirements



Conductivity/Resistivity:

  • Wetted Materials: 316 SST or Titanium

  • Process Connection Choices: 3/4 inch threads for In-line or Submersion, 1.5 inch Sanitary Tri-clamp flange and 2 inch Sanitary Tri-clamp flange

  • Cell constants and corresponding measuring ranges: 0.01 cm-1 / 0.55 to 100 μS (18.3 mΩ to 10 KΩ)
    0.1 cm-1 / 1 to 1000 μS (1 mΩ to 1 KΩ)
    1.0 cm-1 / 10 to 10,000 μS (5 to 5,000 ppm)
    10.0 cm-1 / 100 to 200,000 μS (50 to 100,000 ppm)
    20.0 cm-1 / 200 to 400,000 μS (100 to 200,000 ppm)

  • Compatible Instruments: Signet Instrument Types: 8860 8900, 9900 or the 9950 with the 2850 Sensor Electronics

  • Thread styles are reversible threads or fixed threads

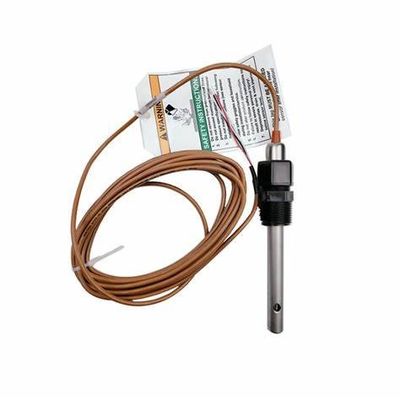

Product Photo








2818-2823 Georg Fischer Piping System +GF+ Signet  Electrodes 0
