3-9900-1 GF Signet Georg Fischer Piping System Field Mount Transmitter

3-9900-1 GF Signet Georg Fischer Piping System Field Mount Transmitter

MOQ: 1
Price: $300-$800
Standard Packaging: 30*50*80
Delivery Period: 3-5DAYS
Agent +GF+ George Fischer Signet Brand 9900 Transmitter 3-9900-1/1P
Payment Method: T/T, L/C
Supply Capacity: 100PCS/MONTHS
Detail Information
Place of Origin
USA
Brand Name
Georg Fischer
Model Number
3-9900-1/1P
Condition:
New And Original
Input Channels:
One
Input:
Digital (S3L)
Case Material:
PBT
Display:
Backlit, 7 And 14-segment
Update Rate:
1 S
Enclosure Size:
¼ DIN
LCD Contrast:
5 Settings
Product Description

3-9900-1 GF Signet Georg Fischer Piping System Field Mount Transmitter



Product Description






GF Signet is offering their 3-9900-1 Transmitter with a field mount that can run on 12 to 32 power (24 VDC nominal).





Product Information




  • Large auto-sensing backlit display with "at-a-glance" visibility

  • "Dial-type" digital bar graph

  • Intuitive and "user-friendly" interface consistent with legacy Signet ProPoint® and ProcessPro® devices

  • Optional Field upgradable relays

  • Selectable error mode for current outputs, 3.6mA or 22mA

  • 4 to 20 mA input (with optional 8058 Signal Converter)

  • Warning LED indicator

  • Custom 13-character label capabilities for the channel type

  • Factory reset capability

General

Input Channels

One

Input Types

Digital (S3L)

Serial ASCII, TTL level, 9600 bps



Frequency

Range

0.5 to 1500 Hz



Accuracy

0.5% of reading

Measurement Types

Flow, pH/ORP, Conductivity/Resistivity, Salinity, Pressure, Temperature, Level, Dissolved Oxygen, Batch or user-defined (via 8058)

Enclosure and Display

Case Material

PBT

Window

Shatter-resistant glass

Keypad

4 buttons, injection-molded silicone rubber seal

Display

Backlit, 7 and 14-segment

Update Rate

1 s

LCD Contrast

5 settings

Indicators

“Dial-type” digital bar graph. LEDs for Open Collector, Relays and Warning Indicator

Enclosure Size

¼ DIN

Mounting

9900-1P





Panel

¼ DIN, ribbed on four sides for panel mounting clip inside panel, silicon gasket included. Optional rear enclosure with flat cover available for waterproof protection when installed inside a panel.

Wall

Options include 9900-1P installed in pre-wired NEMA enclosure or inside of rear enclosure with hinged cover.

Pipe

Optional Rear Enclosure with hinged cover and 9900-1P for pipe mount installation

Mounting

9900-1



Field (Integral)

Options include yellow universal or integral kits for installation with sensor









Product Photo

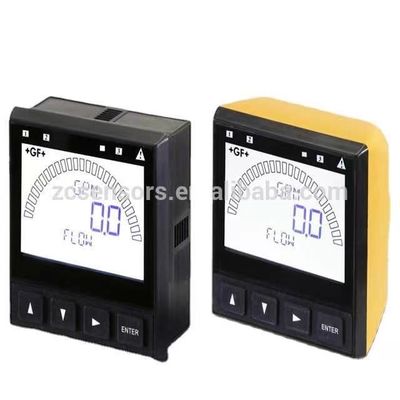

3-9900-1 GF Signet Georg Fischer Piping System Field Mount Transmitter 0
