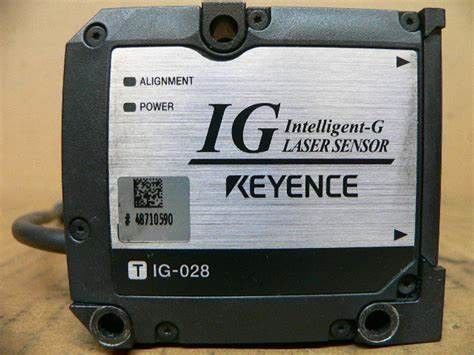

KEYENCE IG-028 Sensor Head 660 Nm Visible Light Semiconductor Laser
  • Name
  • Name
  • Name

KEYENCE IG-028 Sensor Head 660 Nm Visible Light Semiconductor Laser

MOQ: 1PC
Price: $99
Standard Packaging: new in box
Delivery Period: 3-5WORKS DAYS
Payment Method: L/C, T/T
Supply Capacity: 30PCS
Details Information
Product Description
Detail Information
Place of Origin
America
Brand Name
Keyence
Model Number
IG-028
Model:
IG-028
Operation Principle:
CCD Method
Mounting Distance:
0 To 1500 Mm 59.06"
Measurement Range:
28 Mm 1.10"
Linearity:
±0.1 % Of F.S. (±28 µm ±1.10 Mil)*4
Weight:
Approx. 500 G (including Supplied Items)
Highlight:

660 nm Sensor Head

,

Visible light semiconductor laser Sensor Head

,

KEYENCE IG-028 Sensor Head

Product Description
KEYENCE IG-028 Sensor Head 660 Nm Visible Light Semiconductor Laser 0KEYENCE IG-028 Sensor Head 660 Nm Visible Light Semiconductor Laser 1KEYENCE IG-028 Sensor Head 660 Nm Visible Light Semiconductor Laser 2

Specifications

Model IG-028
Operation principle CCD method
Light source Wavelength 660 nm (Visible light semiconductor laser)
FDA Class 1*1
IEC/JIS Class 1
Mounting distance 0 to 1500 mm 59.06"
Measurement range 28 mm 1.10"
Sampling cycle 980 µs (When the number of times for averaging is set to [hsp]: 490 µs)
Minimum detectable object High sensitivity mode ø0.1 mm ø0.003" (Setting distance: 100 mm 3.94")*2
Standard mode ø0.2 mm ø0.007" (Setting distance: 50 mm 1.97" or less),
ø0.5 mm ø0.02" (Setting distance: 500 mm 19.68")*2
Repeatability 5 µm 0.20 Mil (Setting distance: 100 mm 3.94")
10 µm 0.39 Mil (Setting distance: 500 mm 19.68")
80 µm 3.15 Mil (Setting distance: 1,000 mm 39.37")
140 µm 5.51 Mil (Setting distance: 1,500 mm 59.06")*3
Linearity ±0.1 % of F.S. (±28 µm ±1.10 Mil)*4
Temperature characteristics ±0.01 % of F.S./°C (±3 µm ±0.12 Mil/°C)*5
Operation indicator Transmitter Optical axis alignment indicator: Green LED, Power indicator: Green LED
Receiver Optical axis alignment indicator: Green LED, Position monitor: Dual bar LED (Red, Green)
Environmental resistance Enclosure rating IP67
Ambient light Incandescent lamp: 5,000 lux, Sunlight: 5,000 lux*6
Ambient temperature -10 to +45 °C 14 to 113 °F (No freezing)
Relative humidity 35 to 85 % RH (No condensation)
Vibration resistance 10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z axis
Material Case Zinc die-cast (Lower case), PBT (Upper case), Polyarylate (PAR) (Display part), SUS304 (Metallic part)
Lens cover Glass
Cable PVC
Accessories Transmitter × 1, Receiver × 1, Sensor head cables (2 m 6.56') × 2
Weight Approx. 500 g (including supplied items)
