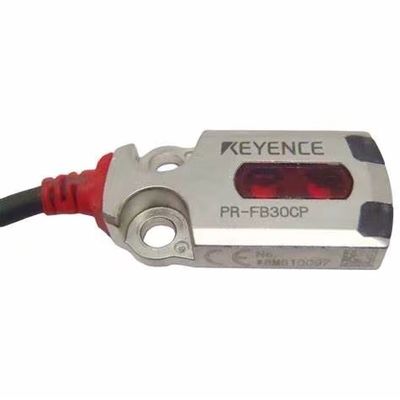

Keyence PR-FB30CP Miniature Photoelectric Sensor, Flat Reflective, M8, 30mm
  • Name
  • Name

Keyence PR-FB30CP Miniature Photoelectric Sensor, Flat Reflective, M8, 30mm

MOQ: 1PC
Price: $100-$200
Standard Packaging: new in box
Delivery Period: 3-5WORKS DAYS
Flat Reflective (Background Suppression) M8 Connector Type, 30mm
Payment Method: L/C, T/T
Supply Capacity: 30PCS
Details Information
Product Description
Detail Information
Place of Origin
America
Brand Name
Keyence
Model Number
PR-FB30CP
Model:
PR-FB30CP
Type:
Reflective (Background Suppression)
Output:
PNP
Shape:
Flat
Cable Connection:
M8 Connector (4 Pin)
Number Of Control Outputs:
2
Spot Diameter:
Approx. ø5 Mm (at 30 Mm)
Weight:
Approx. 10 G
Product Description
Keyence PR-FB30CP Miniature Photoelectric Sensor, Flat Reflective, M8, 30mm 0Keyence PR-FB30CP Miniature Photoelectric Sensor, Flat Reflective, M8, 30mm 1
Model PR-FB30CP
Type Reflective (Background suppression)
Output PNP
Shape Flat
Cable connection M8 connector (4 pin)
Detection distance 1 to 30 mm 0.039" to 1.181"
Number of control outputs 2
Output operation Output 1 Light-ON
Output 2 Dark-ON
Response time Output 1 0.5 ms
Output 2 ON→OFF: 2.7 ms, OFF→ON: 0.5 ms
Sensitivity adjustment None
Spot diameter Approx. ø5 mm (at 30 mm)
Light source 4 element, point light source, red LED (650 nm)
Mutual interference prevention function 4 sensors
Indicator lamp Output indicator (orange), stable operation indicator (green), thrubeam type transmitter: power supply indicator (green)
Control output 30 VDC or lower, 50 mA or lower
Leakage current:
When 3 kΩ load resistance, 0.3 mA or lower. When 1 kΩ load resistance, 0.5 mA or lower. When 0.2 kΩ load resistance, 1.5 mA or lower
Residual voltage:
When 10 mA or lower, 1.0 V or lower. When 10 to 30 mA, 1.5 V or lower. When 30 to 50 mA, 2.0 V or lower.
Protection circuit Power supply reverse connection protection, output overcurrent protection,
output surge protection, power supply surge protection
Rating Power voltage 10 to 30 VDC, including Ripple (P-P) 10 %
Current consumption 19 mA
Environmental resistance Enclosure rating IP67 (IEC60529), IP69K (DIN40050-9), 4X, 6P, 13 (NEMA250)
Insulation resistance 20 MΩ or higher (500 VDC)
Ambient light Incandescent lamp: 5,000 lux or lower, Sunlight: 20,000 lux or lower
Ambient temperature -25 to +55 °C -13 to 131 °F (No freezing)
Storage temperature -25 to +75 °C -13 to 167 °F
Relative humidity 35 to 85 % RH (No condensation)
Withstand voltage 1,000 VAC, 50/60 Hz, 1 min
Vibration resistance 10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z directions
Shock resistance 1,000 m/s2, 6 times in each of the X, Y, and Z directions
Material Case: SUS316L, indicator cover/lens cover: polysulfone,
cord protector: polymethylpentene, filler: polyester-based resin
Accessories Instruction Manual
Weight Approx. 10 g

Tags:

Keyence Photoelectric Sensors,

Keyence Inductive Proximity sensors,

Keyence Laser Sensors
