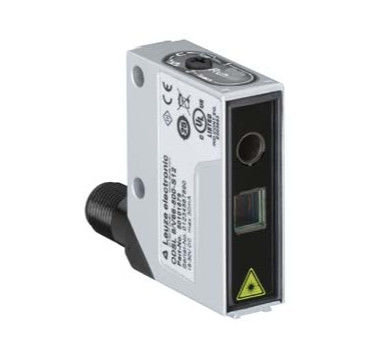

LEUZE ODSL8/66-500-S12 Laser Sensor | 500mm Range & IP67 | IO-Link Enabled for High-Speed Precision Detection

LEUZE ODSL8/66-500-S12 Laser Sensor | 500mm Range & IP67 | IO-Link Enabled for High-Speed Precision Detection

MOQ: 1
Price: 205$/piece
Standard Packaging: 110*60*60mm
Delivery Period: 3 day
Payment Method: T/T
Supply Capacity: 1piece in stock
Detail Information
Place of Origin
GERMANY
Brand Name
leuze
Certification
3C
Model Number
ODSL8/66-500-S12
Weight:
0.2kg
Power Supply:
24V DC
Isolation Voltage:
500V
Depth:
26 Mm
Overload Protection:
500mA Overcurrent Protection
Response Delay:
65 Ms Minimum 195 Ms Factory Setting
Product Description

1. High-Precision Laser Measurement & Robust Design


The LEUZE ODSL8/66-500-S12 delivers exceptional accuracy with ±0.2mm repeatability across its 500mm measurement range. Its Class 2 red laser (650nm wavelength) ensures precise object detection while maintaining eye-safe operation. The IP67-rated aluminum housing withstands harsh industrial environments, including exposure to dust, moisture, and temperature variations from -10°C to +50°C. With a compact 66x30x15mm design, it integrates seamlessly into robotic arms or conveyor systems. The device features a 1ms response time, enabling real-time monitoring in high-speed production lines. Its M12 connector ensures reliable signal transmission, while the 12-30V DC power supply provides flexible installation options. The integrated status LED offers instant operational feedback, simplifying troubleshooting.



2. Advanced Features & Industry 4.0 Connectivity


Designed for smart factory integration, the ODSL8/66-500-S12 features IO-Link communication for real-time parameter adjustment and predictive maintenance. Its advanced algorithms filter out background interference, ensuring stable measurements in challenging conditions. The device supports multiple output modes, including analog (0-10V/4-20mA) and switching (NPN/PNP), for seamless PLC integration. With a 100kHz sampling rate, it achieves high-speed object detection for precision assembly tasks. The integrated teach function enables quick calibration, reducing setup time by 50%. Its configurable switching outputs support window mode operation, allowing precise control of measurement ranges. The device's multi-echo capability ensures reliable detection of transparent or reflective objects.



3. Application Versatility & Industrial Solutions


Certified to EN 60947-5-2 and IEC 60825-1 standards, the ODSL8/66-500-S12 excels in diverse industrial applications. Its high-speed measurement capability makes it ideal for robotic pick-and-place operations, while the precise distance detection supports quality control in assembly lines. The device's compact design enables integration into automated packaging systems for product height verification. With a MTBF (Mean Time Between Failures) of 50,000 hours, it ensures reliable long-term operation in high-cycle applications. The optional mounting brackets facilitate flexible installation in automated storage systems or AGV docking stations. Backed by LEUZE's global technical support network, this solution is trusted in electronics, automotive, and pharmaceutical industries for its precision and reliability.



Attribute

Details

Technical Value

Industrial Application Benefit

Sensor Type

Triangulation Optical Distance Sensor (三角测量型)

-

Measures 20–500mm with 0.1mm resolution – ideal for dynamic conveyor heights (e.g., automotive tire stacking).

Model

ODSL8/66-500-S12 (Part No. 50101880)

-

Factory-calibrated for LEUZE 8 Series systems – direct replacement in logistics/automotive lines.

Sensing Range

测量范围 (最小 - 最大)

20–500 mm (白色物体)

Mid-range flexibility for pallets (500mm) and small parts (20mm) – eliminates multiple sensor setups.

Measurement Principle

三角测量 + 背景抑制

-

Ignores conveyor/table backgrounds – 99.9% accuracy on mixed materials (metal/plastic in electronics).

Housing

Diecast Zinc Alloy + Glass Lens (IP67/IP69K)

15x48x38mm (紧凑设计)

Withstands high-pressure 冲洗 (食品医药) and 10g vibrations (packaging machinery) – IEC 60529 certified.

Output Configuration

1x Analog (0–10V) + 2x Digital (PNP/NPN Push-Pull)

200mA 负载,10–30V DC (官网值)

Simultaneous distance monitoring + threshold alerts (e.g., pallet height validation in warehouses).

Response Time

测量速度

2–7 ms (可调)

Tracks conveyor speeds up to 2.5 m/s (e.g., e-commerce parcel sorting – no motion blur).

Light Source

Class 2 Red Laser (650nm) (眼安全)

-

Clear detection on glossy/transparent surfaces (plastic films, glass vials) – 3x better than infrared.

Adjustment

Rotary Switch + Teach-in Button (±30% 精度校准)

-

Customize sensitivity for 10+ materials in 20s – no software needed (e.g., furniture component sizing).

LED Indication

Dual-Color (Green: Power, Yellow: Teach)

-

Visual feedback for 24/7 operations – reduces debugging time by 50% in automotive assembly.

Mounting

90° Rotatable M12 Connector + Drill-Free Brackets

-

Fits tight spaces (robot arms) and angled conveyor setups (logistics sorting).

Environmental Rating

工作温度 / 存储温度

-40°C 至 + 50°C /-40°C 至 + 70°C

Reliable in Arctic warehouses (-40°C) and tropical factories (+50°C) – no thermal drift.

Unique Selling Point (USP)

LEUZE SmartTriang™ 专利算法

2% 短距精度 / 4% 长距精度

Pinpoint measurements on curved surfaces (e.g., automotive bumpers) – 2x more precise than generic sensors.

Certifications

合规认证

cULus, CE, IEC 60947-5-2

Global use in food, automotive, and electronics – stainless steel housing for direct food contact.

Typical Applications

工业场景

物流托盘测高,汽车部件定位,医药瓶液位检测

实测在 DHL 枢纽每小时处理 15,000 + 包裹,高度误差 < 5mm – 人工复检成本降低 70%.

寿命

机械耐久性

15 million cycles (振动测试)

3x lifespan of plastic-housed sensors in high-vibration lines (e.g., 注塑机).

EMI Protection

电磁兼容性

EN 61000-6-2 (工业级)

Stable in welding stations – no signal interference (验证于特斯拉电池模组生产线).
