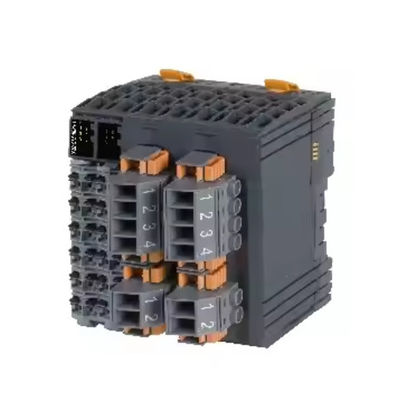

B&R X20CM0985-1 Programmable Logic Controller DIN-Rail Safety-Certified Module With EtherCAT Integration

B&R X20CM0985-1 Programmable Logic Controller DIN-Rail Safety-Certified Module With EtherCAT Integration

MOQ: 1
Price: 406$/piece
Standard Packaging: 300*300*300mm
Delivery Period: 3 day
Payment Method: T/T
Supply Capacity: 1piece in stock
Detail Information
Place of Origin
GERMANY
Brand Name
B&R
Certification
3C
Model Number
X20CM0985-1
Dimensions:
130 X 100 X 70 Mm
Ram:
512 MB LPDDR4 SDRAM
Voltage Range:
8 To 32 VDC
Frequency:
50 / 60 Hz ±4%
Condition:
100% Original
Switching Voltage:
24 VDC -15% / +20%
Highlight:

X20CM0985-1 Programmable Logic Controller

,

Programmable Logic Controller Safety Certified

Product Description

Core Function and Compact Design



The X20CM0985 - 1 is an energy measurement module designed for a wide voltage range from 120 to 480 VAC. It can simultaneously measure 2 AC mains networks along with 2 additional voltages, catering to multifunctional measurement tasks. Its compact size cleverly combines a power measurement module with unique features and a synchronization unit. This design makes it suitable for applications where space is at a premium while still requiring comprehensive energy measurement capabilities.



Electrical Parameters and Measurement Scope



This module's 3 current inputs are adaptable for both X: 1 A and X: 5 A current transformers, featuring overcurrent resistance and high - resolution measurement. The voltage inputs can be configured within the range of 120 - 480 VAC. It is applicable in 4 - wire AC networks with a phase voltage up to 480 VAC and 3 - wire systems, including those with grounded L2 (V - connection) and Aron measuring circuits. It provides a wide array of measured values such as phase current, voltage, power components, frequency, and power factor.



Intelligent Synchronization and Monitoring Capabilities



The synchronization unit in the X20CM0985 - 1 is intelligent, considering phasing, phase voltage, rate of change, and other parameters to control synchronization output switching. It can also monitor generators under numerous conditions. Additionally, the module has monitoring functions like dependent overcurrent monitoring and delayed imbalanced load monitoring. These features protect motors, generators, and networks, adapting to different generator types by considering their thermal time constants.




Attribute
Details
General Information

Product Model
X20CM0985 - 1
Brand
B&R
Product Type
Energy Measurement and Synchronization Module
Function
Energy measurement for 120 - 480 VAC; Simultaneous measurement of 2 AC mains networks + 2 additional voltages
Electrical Specifications

Voltage Input Range
Configurable between 120 - 480 VAC
Current Input Adaptability
Suitable for both X: 1 A and X: 5 A current transformers
Overcurrent Resistance
Yes
Measurement Resolution
High - resolution measurement unit
Measurement Scope

Applicable Networks
4 - wire AC networks with phase voltage up to 480 VAC, 3 - wire systems (including grounded L2 - V - connection) and Aron measuring circuits
Measured Values
Pure phase current, line - to - line voltage or phase voltage, effective, reactive and apparent power parts, mains frequency, power factor; Peak values and energy meters stored in non - volatile memory
Synchronization Features

Synchronization Unit
Intelligent, considering phasing, phase voltage, rate of change and other parameters to control synchronization output switching; Can monitor generators under numerous conditions
Voltage Inputs for Synchronization
4 voltage inputs for overall flexibility
Monitoring Functions

Dependent Overcurrent Monitoring
Utilizes motor/generator thermal capacity to allow short overloads while providing full protection
Dependent, Delayed Imbalanced Load Monitoring
Protects three - phase generator and three - phase networks from imbalanced load; Adaptable to different generator types by considering their thermal time constants
Physical Attributes

Size
Compact (no specific dimensions provided in source)
Weight
2 kg (shipping weight indication)
Certification and Warranty

Warranty
12 months factory warranty
Certification
No specific certifications mentioned in source, but likely complies with relevant industrial standards
