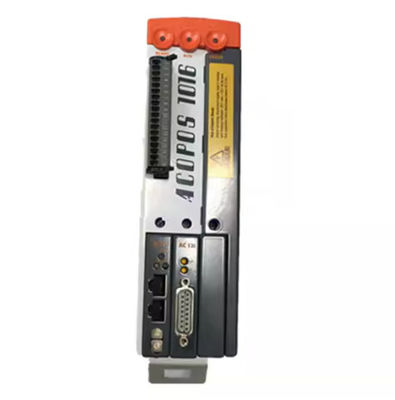

B&R 8V1016-00-2 Industrial Automation Controller Real-Time Processing Safety-Certified System Component

B&R 8V1016-00-2 Industrial Automation Controller Real-Time Processing Safety-Certified System Component

MOQ: 1
Price: $403/piece
Standard Packaging: 400*400*200mm
Delivery Period: 3 day
Payment Method: T/T
Supply Capacity: 1piece in stock
Detail Information
Place of Origin
GERMANY
Brand Name
B&R
Certification
3C
Model Number
8V1016-00-2
Bus:
0.15 W
Relative Humidity:
5 To 95%, Non-condensing
Power Consumption:
0.87 W
Color:
Normal
Operating Temperature:
-25°C To 60°C
Country Of Origin:
Austria
Controller Redundancy:
No
Highlight:

Real Time Processing Industrial Automation Controller

,

8V1016-00-2 Industrial Automation Controller

,

Safety Certified Industrial Automation Controller

Product Description

Product Identity and Core Features



The 8V1016.00 - 2 is an ACOPOS servo drive by B&R. Its material number simplifies identification and ordering. Operating within a 3x 400 - 480 V voltage range, with a current capacity of 1.6 A and a power output of 0.7 kW, it is suitable for applications that require a relatively lower power output. This makes it an ideal choice for small - scale industrial machinery or devices where space and power consumption need to be optimized.



Design and Connectivity Highlights



This servo drive adopts a modular mechanical design with plug - in modules. This design approach not only eases installation but also allows for convenient module replacement and system expansion. All connections are made through plug - in connectors, reducing wiring complexity. An integrated line filter protects the drive from electrical interference, ensuring stable operation. Additionally, the integrated braking resistor efficiently dissipates energy during braking, enhancing the drive's overall performance.



Safety - centric Design



Safety is a top priority in the design of the 8V1016.00 - 2. It comes equipped with an integrated electronic restart inhibit feature, which prevents the drive from restarting under potentially dangerous conditions. The electronic safe restart interlock further enhances safety by ensuring that the restart process is carried out in a controlled and safe manner. These safety features protect both the equipment and the operators, making the servo drive reliable for industrial use.




Attribute

Details

General Information



Product Model

8V1016.00 - 2

Brand

B&R

Product Type

ACOPOS Servo Drive

Electrical Specifications



Mains Input Voltage

3x 400 - 480 VAC ± 10%3x 230 VAC ± 10%

Frequency

50 / 60 Hz ± 4%

Installed Load Max.

2.1 kVA

Inrush Current at 400 VAC

2 A

Switch - on Interval

> 10 s

Integrated Line Filter

Yes (per EN 61800 - 3, category C3)

Power Dissipation at Device Nominal Power without Braking Resistor

110 W

DC Bus Capacitance

165 μF

24 VDC Power Supply Input Voltage

24 VDC + 25% / - 20%

24 VDC Power Supply Current Consumption

Max. 1.47 A + current for motor holding brake

Motor - related



Motor Connection Quantity

1

Continuous Current

1.6 A eff

Peak Current

5 A eff

Nominal Switching Frequency

10 kHz

Possible Switching Frequencies

5 / 10 / 20 kHz

Max. Motor Line Length

15 m

Max. Output Frequency

598 Hz

Protection Features



Overload Protection

Yes

Short - circuit and Ground Fault Protection

Yes

Braking Resistor



Peak Power Output

2 kW

Continuous Power

130 W

Input/Output Signals



Limit Switch and Reference Inputs Quantity

N/A (not specified in provided data)

Limit Switch and Reference Inputs Circuit

N/A (not specified in provided data)

Enable Inputs Quantity

N/A (not specified in provided data)

Enable Inputs Circuit

N/A (not specified in provided data)

Trigger Inputs Quantity

N/A (not specified in provided data)

Trigger Inputs Circuit

N/A (not specified in provided data)

Mechanical and Installation



Slots for Plug - in Modules

3

Weight

2.5 kg

Permissible Mounting Orientations

Vertical (hanging) and horizontal (face up)

Installation Elevation above Sea Level (Nominal)

N/A (not specified in provided data)

Installation Elevation above Sea Level (Maximum)

2000 m

Pollution Degree per EN 61800 - 5 - 1

N/A (not specified in provided data)

Overvoltage Category per EN 61800 - 5 - 1

N/A (not specified in provided data)

Degree of Protection per EN 60529

N/A (not specified in provided data)

Ambient Temperature (Operation - Nominal)

5 - 40 °C

Ambient Temperature (Operation - Maximum)

N/A (not specified in provided data)

Ambient Temperature (Storage)

N/A (not specified in provided data)

Ambient Temperature (Transport)

N/A (not specified in provided data)

Relative Humidity (Operation)

N/A (not specified in provided data)

Relative Humidity (Storage)

N/A (not specified in provided data)

Relative Humidity (Transport)

Max. 95% at 40 °C

Certifications and Compliance



Certifications

N/A (not specified in provided data)
