Product Description

Product Identification and Basics

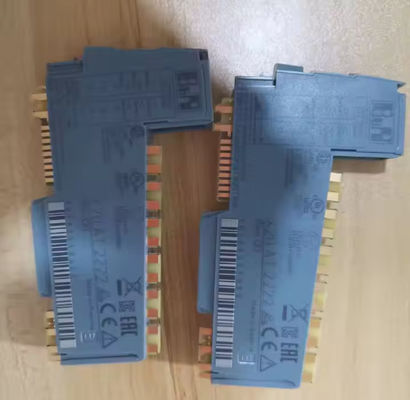

The X20AT2222, with its distinct material number, is a specialized module by B&R. It is designed for resistance temperature measurement. Equipped with 2 inputs, it is compatible with both PT100 and PT1000 sensors. These sensors are renowned for their accuracy in temperature - related applications. The module serves as a vital component in industrial control systems, data acquisition setups, and scientific research where precise temperature monitoring is crucial.

Technical Features

One of the remarkable features of the X20AT2222 is its configurability. Each channel can be independently set to work with either a PT100 or PT1000 sensor, offering flexibility based on specific application needs. It enables direct resistance measurement, which is beneficial for calibration and in - depth sensor analysis. Additionally, the module allows for the configuration of 2 - or 3 - wire connections per module, influencing measurement accuracy. The configurable filter time helps in minimizing noise, ensuring stable and reliable temperature readings.

Terminal Compatibility

The X20AT2222 is designed with an eye on versatility in installation. It is primarily made for X20 6 - pin terminal blocks, which are commonly used in many industrial setups. However, in cases where logistical or other practical reasons demand, it can also be used with 12 - pin terminal blocks. This adaptability in terminal compatibility simplifies the integration process, allowing for easy incorporation into existing systems or new installations without major re - engineering efforts.

Category	Details
General Information
- Material Number	X20AT2222
- Brand	B&R
- Product Type	Temperature Input Module
- Function	Measure resistance - based temperature using PT100 and PT1000 sensors, convert data for industrial control systems
- B&R ID Code	0x1BA6
- Warranty	Usually 12 months (varies by region and distributor)
Input Specifications
- Number of Inputs	2
- Compatible Sensor Types	PT100, PT1000
- Sensor Type Configuration	Configurable per channel
- Resistance Measurement	Direct resistance measurement available
- Connection Type	Configurable 2 - or 3 - wire connections per module
- Resistance Measurement Range	Approximately 0.1 - 4500 Ω (PT1000: 0.05 - 2250 Ω)
- Input Resistance	With constant current supply for connection
Converter Specifications
- Resolution	16 - bit
- Conversion Time	1 channel: 20 ms with 50 Hz filter; 2 channels: 80 ms with 50 Hz filter
- Conversion Procedure	Sigma - delta
- Output Format	int or uint for resistance measurement
Filter Specifications
- Filter Type	First - order low - pass filter
- Filter Cut - off Frequency	500 Hz
- Filter Time	Configurable between 1 ms and 66.7 ms
Power Requirements
- Bus Power Consumption	0.01 W
- Internal I/O Power Consumption	1.1 W
- Additional Power Dissipation by Actuators (Resistive)	-
Status and Diagnostics
- Status Indicators	I/O function per channel, operating state, module status
- Diagnostics	Module run/error and input diagnostics available via LED status indicators and software
Environmental Conditions
- Operating Temperature	- 25 °C to + 60 °C
- Storage Temperature	- 40 °C to + 85 °C
- Relative Humidity	5% - 95%, non - condensing
- Vibration and Shock Resistance	Designed to withstand normal industrial vibrations and shocks (specific values may be in product's official technical documentation)
Mounting and Dimensions
- Mounting Method	Likely plug - in mounting (details may refer to product manual)
- Dimensions	Specific dimensions not provided in given sources, but designed to fit standard X20 system mounting structures
- Weight	Approximately 0.1 kg (varies slightly)
- Protection Class	IP20 (prevents solid objects larger than 12 mm and accidental contact with live parts)
Certifications
- CE	Yes
- UKCA	Yes
- ATEX	Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X
- UL	cULus E115267 (industrial control equipment)
- HazLoc	cCSAus 244665 (process control equipment for hazardous locations, Class I, Division 2, Groups ABCD, T5)
- DNV	Temperature: B(0 - 55 °C); Humidity: B(up to 100%); Vibration: B(4 g); EMC: B(bridge and open deck)
- LR	ENV1
- KR	Yes
- ABS	Yes
- BV	EC33B, Temperature: 5 - 55 °C, Vibration: 4 g, EMC: Bridge and open deck
- EAC	Yes
- KC	Yes
Terminal Compatibility
- Primary Terminal Block	Designed for X20 6 - pin terminal blocks
- Alternative Terminal Block	Can be used with 12 - pin terminal blocks (e.g., for logistical reasons)
