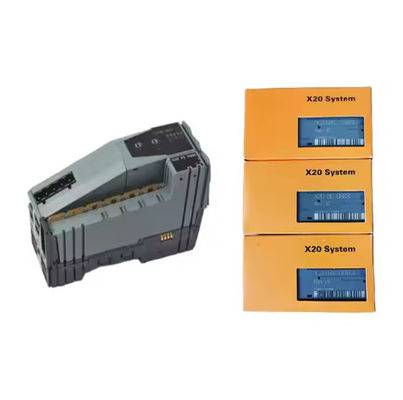

B&R X20BC0083 Bus Controller Multi-Protocol 1Gbps Backplane With 8 Ports & IEC 61158 Compliance

B&R X20BC0083 Bus Controller Multi-Protocol 1Gbps Backplane With 8 Ports & IEC 61158 Compliance

MOQ: 1
Price: 205$/piece
Standard Packaging: 100*100*90mm
Delivery Period: 3 day
Payment Method: T/T
Supply Capacity: 1piece in stock
Detail Information
Place of Origin
GERMANY
Brand Name
B&R
Certification
3C
Model Number
X20BC0083
Inrush Current:
Max. 10 A
Dimensions:
100mm X 100mm X 72mm
Relative Humidity:
5 To 95%, Non-condensing
Transfer Rate:
10/100 Mbit/s
Shipping:
DHL UPS TNT FEDEX ARAMEX
Permissible Input Signal:
Max. 132 VAC / 528 VAC
Certifications Ce:
Yes
Highlight:

X20BC0083 Bus Controller

,

Bus Controller With 8 Ports

Product Description

1. Key Features



The X20BC0083, identified by the material number X20BC0083, is a bus controller with notable features. It is based on POWERLINK technology, enabling high - speed and reliable communication. It allows for I/O configuration and firmware updates directly via the fieldbus, streamlining the maintenance and setup process. The integrated hub further simplifies wiring, making it a cost - effective solution for industrial setups.



2. Connectivity



This bus controller serves as a crucial link between X2X Link I/O nodes and POWERLINK. It provides a stable connection that ensures seamless data transfer between these components. This connectivity is essential for the proper functioning of industrial automation systems, allowing different parts of the system to communicate effectively.



3. Synchronization



The X20BC0083 offers flexible synchronization options. It can operate the X2X Link cycle synchronously on a 1:1 basis or synchronize it to POWERLINK using a prescaler. This synchronization ability is vital for maintaining the accuracy and efficiency of industrial processes, ensuring that all components work in harmony.



Attribute Details
Product Model X20BC0083
Manufacturer B&R
B&R ID Code To be confirmed (not always publicly available for all models)
Communication Protocol POWERLINK
Configuration and Update I/O configuration and firmware update via the fieldbus
Wiring Feature Integrated hub for economical wiring
Connectivity Enables connection of X2X Link I/O nodes to POWERLINK
Synchronization Modes Operate X2X Link cycle synchronously 1:1 or synchronous to POWERLINK using a prescaler
Power Supply 24 V DC ± 15%
Power Consumption Bus: Approximately 0.3 W; Internal I/O: Around 0.5 W
Operating Temperature -25°C to +60°C (horizontal mounting); -25°C to +50°C (vertical mounting)
Storage Temperature -40°C to +85°C
Relative Humidity 5 - 95% (non - condensing)
Dimensions 125 mm (W) x 100 mm (H) x 110 mm (D) (typical for X20 series, subject to verification)
Weight Approximately 0.7 kg (estimate based on similar products)
Mounting DIN - rail mounting
Status Indicators LEDs for power, communication status
Certifications CE, UL, cUL, ATEX (Zone 2), DNV - GL, CCS, LR, KR, ABS, BV
