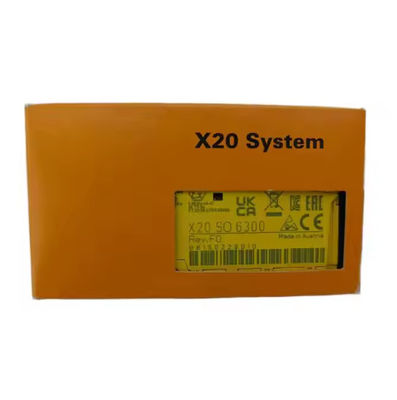

B&R X20SO6300: 6 - Channel Solid - State Output Module with 24V DC, High - Switching Frequency, and Enhanced Durability for Industrial Automation

B&R X20SO6300: 6 - Channel Solid - State Output Module with 24V DC, High - Switching Frequency, and Enhanced Durability for Industrial Automation

MOQ: 1
Price: 100$/piece
Standard Packaging: 200*50*50mm
Delivery Period: 3 day
Payment Method: T/T
Supply Capacity: 1piece in stock
Detail Information
Place of Origin
GERMANY
Brand Name
B&R
Certification
3C
Model Number
X20SO6300
Operating Temperature:
-25°C To +60°C
Ram:
512 MB LPDDR4 SDRAM
Startup Delay:
Max. 1 S
Certifications:
CE, UL, CSA
Number Of Digital Outputs:
8
Programming Software:
Automation Studio
Power Consumption:
4.3 W
Product Description

1. Module Specifications



The X20SO6300, identified by the material number X20SO6300, is a module with 6 safe digital outputs. Each output has a nominal current of 0.2 A and operates on a source circuit. It features output type B and comes with integrated output protection. These specifications make it suitable for a variety of safety - related applications.



2. Application in Safety - Related Scenarios



This module can be used for controlling actuators in safety - related applications up to PL e or SIL 3. The outputs are based on semiconductor technology, ensuring that safety - related characteristics are independent of the number of operating cycles. The output type B is necessary for actuators with reference potential. Moreover, the safe digital output channels prevent automatic restart during network errors.



3. Compatibility and Cabling



The X20SO6300 is designed to be used with X20 12 - pin terminal blocks. When using the module, especially for output type B, it's crucial to pay attention to the special notices regarding cabling. This ensures proper functionality and maintains the safety and reliability of the overall system in which the module is integrated.

Attribute Details
Product Model X20SO6300
Manufacturer B&R
B&R ID Code 0x4622
Number of Outputs 6 safe digital outputs
Output Current Nominal 0.2 A
Circuit Type Source circuit
Output Type Type B
Output Protection Integrated
Safety Level Suitable for safety - related applications up to PL e or SIL 3
Technology Semiconductor - based outputs
Operating Cycle Independence Safety - related characteristics independent of the number of operating cycles
Automatic Restart Protection Protection against automatic restart during network errors
Terminal Block Compatibility Designed for X20 12 - pin terminal blocks
Supply Voltage 24 VDC ±15%
Power Consumption Bus: 0.25 W; Internal I/O: 0.7 W
Operating Temperature - 25°C to + 60°C (horizontal mounting); - 25°C to + 50°C (vertical mounting)
Storage Temperature - 40°C to + 85°C
Relative Humidity 5 - 95% (non - condensing)
Dimensions 125 mm (W) x 100 mm (H) x 110 mm (D)
Weight Approximately 0.7 kg
Mounting DIN - rail mounting
Status Indicators LEDs for power, output status
Certifications CE, UL, cUL, ATEX (Zone 2), DNV - GL, CCS, LR, KR, ABS, BV
