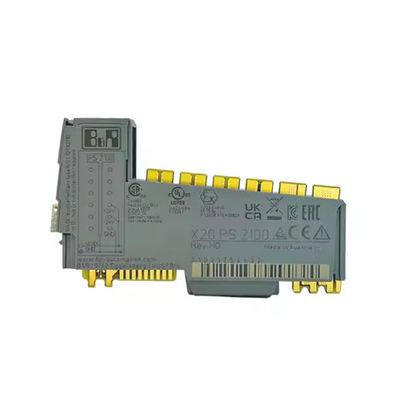

B&R X20PS2100 Power Supply: 24V DC Output, 10A Current Capacity, High - Efficiency Design for Industrial Automation Systems

B&R X20PS2100 Power Supply: 24V DC Output, 10A Current Capacity, High - Efficiency Design for Industrial Automation Systems

MOQ: 1
Price: 120$/piece
Standard Packaging: 160*110*60mm
Delivery Period: 3 day
Payment Method: T/T
Supply Capacity: 1piece in stock
Detail Information
Place of Origin
GERMANY
Brand Name
B&R
Certification
3C
Model Number
X20PS2100
Fuse:
Integrated, Cannot Be Replaced
Nominal Output Voltage:
24 VDC
Inrush Current:
5 A (at 230 VAC)
Transfer Rate:
10/100 Mbit/s
Manufacturer:
B&R
Sensor Standard:
EN 60584
Input Voltage:
24 VDC -15% / +20%
Product Description

Product Overview



The X20PS2100, identified by the material number X20PS2100, is a crucial component in industrial setups. It is a 24 VDC supply module. This specific voltage output makes it suitable for a wide range of industrial applications where a stable and reliable power source is required. It serves as a dedicated power provider within the system.



Functionality



This supply module is designed for the internal I/O supply. In an industrial control system, the I/O components play a vital role in receiving and sending signals. The X20PS2100 ensures that these I/O elements have a consistent power supply, which is essential for the accurate and efficient operation of the entire system. Without a proper power source, the I/O functions may be compromised.



Significance



The use of the X20PS2100 for internal I/O supply enhances the overall reliability of the industrial system. A stable power supply reduces the risk of malfunctions and errors in the I/O operations. This, in turn, leads to increased productivity and fewer disruptions in the industrial process. It is an indispensable part of ensuring the smooth running of industrial control systems.



Attribute Details
Product Model X20PS2100
Manufacturer B&R
B&R ID Code 0x3F68
Supply Voltage 24 VDC
Output Current 10 A
Power Output 240 W
Input Voltage Range 18 - 36 VDC
Ripple and Noise ≤ 100 mVpp
Efficiency ≥ 90%
Over - current Protection Yes, automatic recovery
Over - voltage Protection Yes, automatic shutdown
Short - circuit Protection Yes, automatic recovery
Temperature Range (Operating) - 25 to 60 °C
Temperature Range (Storage) - 40 to 85 °C
Relative Humidity 5 - 95%, non - condensing
Degree of Protection IP20
Cooling Convection
Dimensions (W x H x D) 125 x 100 x 110 mm
Weight Approx. 1 kg
Status Indicators Power on, Fault
Certifications CE, UL, cUL, ATEX (Zone 2), DNV - GL, CCS, LR, KR, ABS, BV
Mounting DIN rail or panel
Application Internal I/O supply in industrial automation systems
