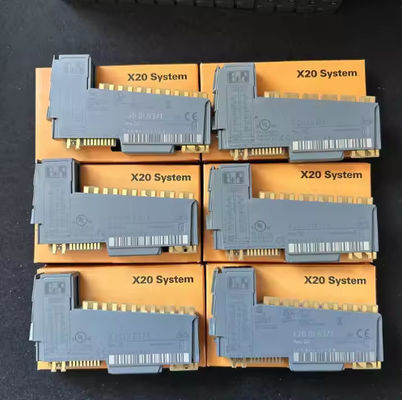

B&R X20DI6371 Digital Input Module | 32-Ch IP67 Isolated DI with PROFINET & 0.1ms Response

B&R X20DI6371 Digital Input Module | 32-Ch IP67 Isolated DI with PROFINET & 0.1ms Response

MOQ: 1
Price: 205$/piece
Standard Packaging: 130*60*60mm
Delivery Period: 3 day
Payment Method: T/T
Supply Capacity: 1piece in stock
Detail Information
Place of Origin
GERMANY
Brand Name
B&R
Certification
3C
Model Number
X20DI6371
Input Voltage:
24 VDC -15% / +20%
Bus:
0.15 W
Internal I/O:
0.88 W
Input Current At 24 VDC:
Typ. 3.75 MA
Input Resistance:
Typ. 6.4 KΩ
Summation Current:
0.5 A
Product Description

Basic Product Information



The X20DI6371, identified by the material number X20DI6371, is a digital input module. It comes with 6 digital inputs, making it suitable for various industrial applications that require input data collection. The module is designed to handle different connection types, which adds to its versatility in real - world setups.



Connection Features



This module offers flexible connection options. It supports sink connections for its inputs. For wiring, it can use a 6 - pin terminal block for 1 - wire connections, enabling universal 1 - line wiring. Additionally, 2 - wire connections can be achieved with the 12 - pin terminal block. The ability to adapt to different wiring methods allows for seamless integration into existing or new industrial control systems.



Power and Filtering



The X20DI6371 operates with a 24 VDC sensor supply. This standard voltage ensures compatibility with a wide range of sensors in industrial environments. Moreover, it has a software - configurable input filter for the entire module. This filter can be adjusted according to the specific requirements of the application, helping to reduce noise and ensure accurate input signal reception.



Attribute Details
Product Model X20DI6371
Manufacturer B&R
Input Quantity 6 digital inputs
Connection Type Sink connection
1 - wire connections with 6 - pin terminal block
2 - wire connections available (using 12 - pin terminal block as per description)
Sensor Supply Voltage 24 VDC
Input Filter Software - configurable for the entire module
Input Voltage Range 24 VDC - 15% / + 20% (as per some sources)
Input Current at 24 VDC Typ. 3.75 mA (as per one source)
Switching Threshold Low < 5 VDC
High > 15 VDC (as per one source)
B&R ID Code 0x1B93 (from one source)
Status Indicators I/O function per channel, operating state, module status
Diagnostics Module run/error indication using status LED and software
Power Consumption Bus: 0.15 W
Internal I/O: 0.88 W
Additional power dissipation by actuators (resistive): - (as per one source)
Certifications CE: Yes
ATEX: Zone 2, II 3G Ex nA nC IIA T5 Gc
IP20, Ta (see X20 user's manual)
FTZÚ 09 ATEX 0083X
UL: cULus E115267 (Industrial control equipment)
HazLoc: cCSAus 244665 (Process control equipment for hazardous locations, Class I, Division 2, Groups ABCD, T5)
DNV GL: Temperature: B(0 - 55 °C), Humidity: B(up to 100%), Vibration: B(4 g), EMC: B(bridge and open deck)
LR: ENV1
KR: Yes
ABS: Yes
EAC: Yes
KC: Yes (as per one source)
Shipping Weight 1.5 kg (from one source)
Estimated Shipping Dimensions 0.5" x 3.0" x 2.3" (1.3 cm x 7.6 cm x 5.7 cm) (from one source)
Country of Origin Austria
Warranty 12 months (from one source) or 2 years (but noted manufacturer's warranty may not apply in one case)
