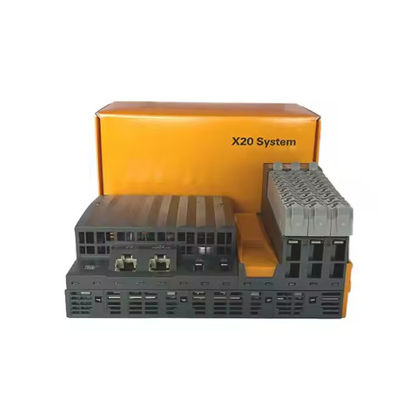

B&R X20CP1382 Industrial PLC | 800MHz Dual-Core, EtherNet/IP RT & IP20 3-Slot Compact

B&R X20CP1382 Industrial PLC | 800MHz Dual-Core, EtherNet/IP RT & IP20 3-Slot Compact

MOQ: 1
Price: 460$/piece
Standard Packaging: 170*90*80mm
Delivery Period: 3 day
Payment Method: T/T
Supply Capacity: 1piece in stock
Detail Information
Place of Origin
GERMANY
Brand Name
B&R
Certification
3C
Model Number
X20CP1382
Input Voltage:
24 VDC -15% / +20%
Clock Frequency:
400 MHz
Type:
2 GB EMMC Flash Memory
Guaranteed:
40 TB
Weight:
310 G
Width:
164 Mm
Height:
99 Mm
Product Description

Hardware Configuration



The X20CP1382, with material number X20CP1382, is a member of the X20 Compact controller series. It features an Intel x86 400 MHz compatible processor integrated with an I/O processor. Boasting 256 MB DDR3 SDRAM and a 2 GB onboard flash drive, it offers sufficient storage and memory for various operations. The 32 kB FRAM for remanent variables is a useful addition. Its fanless and battery - free design not only reduces maintenance but also ensures reliable operation.



Integrated I/O Modules



This controller is distinct for its 3 integrated I/O modules. It comes with 30 digital inputs/outputs and 2 analog inputs. Notably, 1 analog input can be used for Pt1000 resistance temperature measurement. These integrated I/O capabilities make it suitable for a wide range of industrial applications, allowing for seamless connection and control of different devices and sensors.



Connectivity and Expansion



The X20CP1382 offers rich connectivity options. It has Ethernet, 2x USB, an RS232 interface, POWERLINK, and CAN bus as integrated interfaces. For even more flexibility, it has 1 slot for modular interface expansion. This enables users to add additional fieldbus connections using an interface module from the X20 standard portfolio, adapting the controller to diverse industrial networking requirements.







Attribute Details
Product Model X20CP1382
Manufacturer B&R
Processor Intel x86 400 MHz compatible with integrated I/O processor
Memory 256 MB DDR3 SDRAM, 2 GB onboard flash drive
Remanent Variables Storage 32 kB FRAM
Integrated I/O
- Digital 30 digital inputs/outputs (details not fully specified in original text)
- Analog 2 analog inputs, 1 usable for Pt1000 resistance temperature measurement
Connectivity
- Ethernet Available
- POWERLINK With poll - response chaining
- USB Onboard USB (number not specified in original text)
- RS232 Yes
- CAN bus Available
Expansion 1 slot for modular interface expansion
Cooling Fanless
Battery No
Real - Time Clock Backed - up
Dimensions Not provided in the given text
Weight Not provided in the given text
Power Consumption Not provided in the given text
Power Supply Not provided in the given text
Certifications Not provided in the given text
