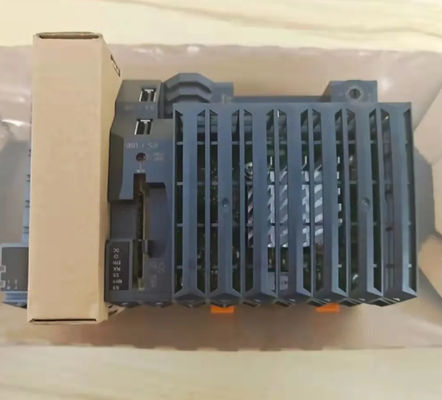

B&R X20CP1584 Controller: 1.0 GHz Intel Atom Power, Fanless Design - Ideal for Industrial Automation Projects | Unique CompactFlash Storage & Onboard Ethernet

B&R X20CP1584 Controller: 1.0 GHz Intel Atom Power, Fanless Design - Ideal for Industrial Automation Projects | Unique CompactFlash Storage & Onboard Ethernet

MOQ: 1
Price: 320$/piece
Standard Packaging: 160*100*100mm
Delivery Period: 3 day
Payment Method: T/T
Supply Capacity: 1piece in stock
Detail Information
Place of Origin
GERMANY
Brand Name
B&R
Certification
3C
Model Number
X20CP1584
Input Voltage:
24 VDC -15% / +20%
I/O Supply - I/O Power Supply:
No
CPU/X2X Link Supply - CPU/X2X Link Power Supply:
Yes
Width:
150 Mm
Height:
99 Mm
Depth:
85 Mm
Weight:
400 G
Product Description

1. Hardware Configuration



The X20CP1584, identified by the material number X20CP1584, is a high - performance controller. It is powered by an Intel Atom 600 MHz processor paired with an additional I/O processor. This combination ensures efficient data processing and handling of input/output operations. With 256 MB DDR2 - SDRAM, it has sufficient memory for running various applications smoothly. Its fanless design not only reduces noise but also enhances reliability, as there are no moving parts that could potentially fail. CompactFlash serves as removable application memory, allowing for easy data storage and transfer, which is highly convenient for industrial applications.



2. Communication Capabilities



This controller comes with a comprehensive set of communication interfaces. Onboard Ethernet, a Gigabit interface, enables high - speed data transfer, making it suitable for applications that require large - volume data transmission. The POWERLINK interface, with its support for poll response chaining mode (PRC), offers excellent real - time network performance. This is crucial for industrial processes where timely data exchange is essential. USB is also included as a standard feature, providing additional connectivity options. These interfaces, combined, make the X20CP1584 a versatile choice for industrial networking.



3. Expansion Flexibility



The X20CP1584 is designed with expansion in mind. It features one slot for modular interface expansion. This single slot provides great flexibility as it allows users to integrate various bus and network systems into the X20 system. By using communication modules, different industrial requirements can be met. Whether it's adding a new communication protocol for a specific application or enhancing the existing network infrastructure, the expansion slot of the X20CP1584 enables customization and adaptation to different industrial scenarios.



Attribute Details
Product Model X20CP1584
Manufacturer B&R
Processor Intel Atom 600 MHz with additional I/O processor
Memory 256 MB DDR2 - SDRAM
Removable Memory CompactFlash for application storage
On - board Interfaces Ethernet (Gigabit), POWERLINK with poll response chaining, USB
Expansion Slots 1 slot for X20 communication modules
Cooling Fanless
Power Consumption Not specified in the given text (general power - related info may be available in the full product documentation)
Power Supply Not specified in the given text (usually DC power, details in full product documentation)
Dimensions Not specified in the given text (information likely in the full product documentation)
Weight Not specified in the given text (data may be in the full product documentation)
Certifications Not specified in the given text (look in the full product documentation for details like CE, UL, etc.)
