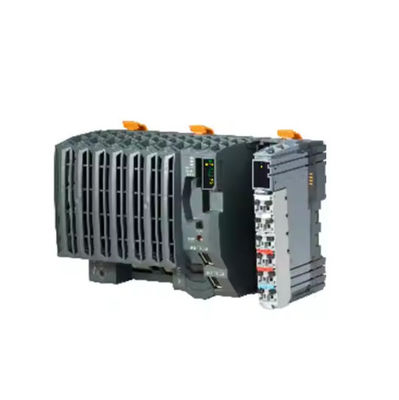

B&R X20CP1585 Industrial PLC | Dual-Core 600MHz CPU with PROFINET RT & 4-Slot Modular Expansion

B&R X20CP1585 Industrial PLC | Dual-Core 600MHz CPU with PROFINET RT & 4-Slot Modular Expansion

MOQ: 1
Price: 435$/piece
Standard Packaging: 160*100*100mm
Delivery Period: 3 day
Payment Method: T/T
Supply Capacity: 1piece in stock
Detail Information
Place of Origin
GERMANY
Brand Name
B&R
Certification
3C
Model Number
X20CP1585
Width:
150 Mm
Height:
99 Mm
Depth:
85 Mm
Weight:
400 G
Type:
USB 1.1/2.0
Input Voltage:
24 VDC -15% / +20%
Product Description

Fundamental Configuration



The X20CP1585 is a controller with the material number X20CP1585. It is powered by an Intel Atom 1.0 GHz processor combined with an additional I/O processor, ensuring smooth operation. With 256 MB DDR2 - SDRAM, it offers sufficient memory for various applications. Its fanless design not only reduces noise but also enhances reliability in operation. CompactFlash serves as removable application memory, allowing for easy data storage and transfer.



Performance Characteristics



This controller comes with a set of standard and high - performance features. Onboard Ethernet, which is a Gigabit interface, enables high - speed data transfer. POWERLINK with poll response chaining (PRC) provides excellent real - time network performance, crucial for time - sensitive applications. USB is also included, adding to its connectivity options. These features, combined with its price - performance ratio, make it a popular choice in the market.



Expansion Capabilities



The X20CP1585 has one slot for modular interface expansion. This single slot is highly versatile as it allows for the integration of various bus and network systems into the X20 system. By using communication modules, users can customize the controller according to their specific requirements, whether it's adding new communication protocols or enhancing existing network connections, providing great flexibility in different industrial scenarios.





Attribute Details
Product Model X20CP1585
Manufacturer B&R
Processor Intel Atom 1.0 GHz with additional I/O processor
Memory 256 MB DDR2 - SDRAM
Removable Memory CompactFlash for application memory
Communication Interfaces - Onboard Ethernet (10/100/1000Base - T, Gigabit)
- POWERLINK with poll response chaining (PRC) (v1/v2)
- 2 USB ports
- 1 RS232 interface
Expansion Slots 1 slot for X20 communication modules
Cooling Method Fanless
Power Consumption - Without interface module and USB: 8.2 W
- For X2X Link power supply: 1.42 W
Power Supply - Input voltage: 24 VDC (-15% / + 20%)
- Input current: max. 1.5 A
- Fuse: Integrated (not replaceable), reverse polarity protection: Yes
Dimensions - Width: 150 mm
- Height: 99 mm
- Depth: 85 mm
Weight 400 g
Shipping Weight 2 kg
Included Accessories - Power supply module
- 1x Terminal block X20TB12
- Slot cover and X20 end cover plate X20AC0SR1 (right)
