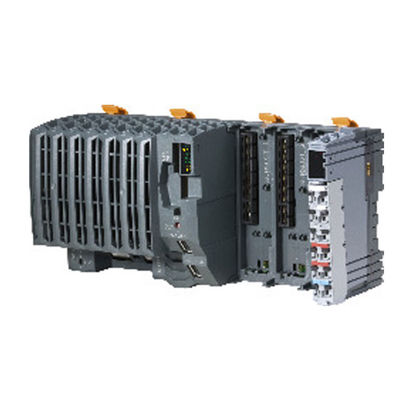

B&R X20CP3583 Industrial Controller | Redundant 24V DC PLC with Real-Time POWERLINK & 3-Slot Expandability

B&R X20CP3583 Industrial Controller | Redundant 24V DC PLC with Real-Time POWERLINK & 3-Slot Expandability

MOQ: 1
Price: 433$/piece
Standard Packaging: 210*100*100mm
Delivery Period: 3 day
Payment Method: T/T
Supply Capacity: 1piece in stock
Detail Information
Place of Origin
GERMANY
Brand Name
B&R
Certification
3C
Model Number
X20CP3583
Controller Redundancy:
No
Storage Health Data Support:
Yes
Input Voltage:
24 VDC -15% / +20%
Width:
200 Mm
Height:
99 Mm
Depth:
85 Mm
Weight:
470 G
Product Description

Product Basics



The X20CP3583 is an entry - level Atom - based controller. Its material number is X20CP3583. It comes with an Intel ATOM 333 MHz - compatible CPU integrated with an additional I/O processor. Fanless in design, it features 128 MB DDR2 SDRAM. CompactFlash serves as removable application memory, making data storage and retrieval convenient for various applications.



Performance Features



This controller offers a range of standard features. It has onboard Ethernet, capable of gigabit - range communication, and POWERLINK with poll response chaining for enhanced real - time network performance. USB is also included. With an optimal price/performance ratio, it provides the same high - quality features as larger controllers in the series, meeting the needs of cost - conscious users without sacrificing performance.



Expansion Capabilities



The X20CP3583 has 3 slots for modular interface expansion. This allows for easy integration of various bus and network systems into the X20 system via communication modules. Whether it's adding new communication protocols or enhancing existing network connections, these slots provide the flexibility to adapt the controller to different industrial and technological requirements.





Category

Details

B&R ID code

0xD45C

Cooling

Fanless

Status indicators

CPU function, Ethernet, POWERLINK, CompactFlash, battery

Diagnostics



Battery

Yes, using LED status indicator and software

CPU function

Yes, using LED status indicator

CompactFlash

Yes, using LED status indicator

Ethernet

Yes, using LED status indicator

POWERLINK

Yes, using LED status indicator

Temperature

Yes, using software register

Support



Controller redundancy

No

Storage health data support

Yes

ACOPOS support

Yes

Visual Components support

Yes

Power consumption



Without interface module and USB

8.2 W

For X2X Link power supply

1.42 W

Internal I/O

0.6 W

Additional power dissipation caused by actuators (resistive)

-

Certifications

CE: Yes
UKCA: Yes
ATEX: Zone 2, II 3G Ex nA nC IIA T5 Gc
IP20, Ta (see X20 user's manual)
FTZÚ 09 ATEX 0083X
UL: cULus E115267 (Industrial control equipment)
HazLoc: cCSAus 244665 (Process control equipment for hazardous locations, Class I, Division 2, Groups ABCD, T5)
DNV: Temperature: B(0 to 55°C), Humidity: B(up to 100%), Vibration: B(4 g), EMC: B(bridge and open deck)
CCS: Yes
LR: ENV1
KR: Yes
ABS: Yes
BV: EC33B (Temperature: 5 - 55°C, Vibration: 4 g, EMC: Bridge and open deck)
