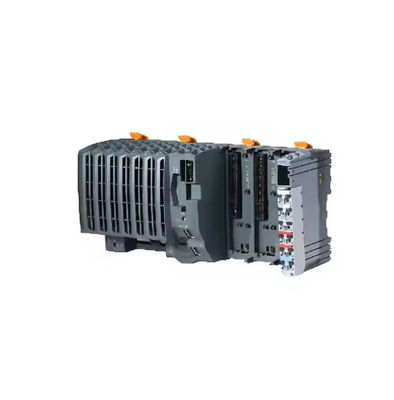

B&R X20CP3584 Industrial PLC Controller | Compact High-Speed Automation Module with 24V DC & Real-Time I/O

B&R X20CP3584 Industrial PLC Controller | Compact High-Speed Automation Module with 24V DC & Real-Time I/O

MOQ: 1
Price: $403/piece
Standard Packaging: 210*110*100mm
Delivery Period: 3 day
Payment Method: T/T
Supply Capacity: 1piece in stock
Detail Information
Place of Origin
GERMANY
Brand Name
B&R
Certification
3C
Model Number
X20CP3584
Controller Redundancy:
Yes
Storage Health Data Support:
Yes
ACOPOS Support:
Yes
Width:
200 Mm
Height:
99 Mm
Depth:
85 Mm
Weight:
470 G
Product Description

1. Core Hardware Specifications & Processing Power (98 words)


The B&R X20CP3584 industrial controller features an Intel Atom 600 MHz dual-processor architecture, enhanced by a dedicated I/O processor for optimized multitasking. Equipped with 256 MB DDR2-SDRAM and a removable CompactFlash card for application storage, it ensures reliable data handling in harsh environments. The fanless design minimizes maintenance while supporting continuous operation. Three modular expansion slots allow integration of X20 communication modules for customized industrial bus connectivity (e.g., PROFIBUS, CANopen). A Gigabit Ethernet port and USB 2.0 interface enable high-speed data transfers, while the compact form factor (compatible with X20 system standards) simplifies retrofitting into existing automation setups.



2. Real-Time Communication & Network Capabilities (102 words)


Engineered for precision automation, the X20CP3584 delivers deterministic control through POWERLINK with Poll Response Chaining (PRC) technology, achieving sub-100µs cycle times for mission-critical processes. Dual Ethernet ports (including 1x Gigabit) support simultaneous device networking and supervisory control system integration. The onboard POWERLINK interface synchronizes motion and I/O signals across distributed systems, ideal for packaging or assembly line applications. Redundant ring topology support prevents network downtime, while USB facilitates local diagnostics. Compliance with IEC 61131-3 programming standards ensures compatibility with industrial automation ecosystems. Extended temperature range (-25°C to +60°C) and vibration resistance (5g @ 10-150Hz) guarantee performance in extreme conditions.



3. System Scalability & Redundancy Solutions (97 words)


Designed for mission-critical operations, the X20CP3584 enables controller-level redundancy through hot-swappable configurations, ensuring <50ms failover response for uninterrupted production. Its modular architecture supports mixed signal modules (analog/digital) and specialty cards like SSI encoders or thermocouples. The removable CompactFlash permits rapid application cloning across multiple units, reducing deployment time. Pre-installed Automation Runtime software allows seamless integration with B&R’s mapp Technology for HMI and IoT functions. Detailed redundancy protocols are outlined in the dedicated user manual (Document ID: BRP-AS-RED-002), covering synchronization mechanisms and power supply buffering strategies. IP20-rated housing with corrosion-resistant coatings ensures longevity in humid or dusty environments.







Attribute Details
Processor Intel Atom 600 MHz, with an additional I/O - processor
Memory 256 MB DDR2 - SDRAM
CompactFlash as removable application memory
Connectivity Onboard Ethernet
POWERLINK with poll response chaining
USB
Expansion Slots 3 slots for modular interface expansion
Redundancy Controller redundancy possible
Cooling Fanless
Dimensions 8.0" x 3.8" x 3.5" (20.3 cm x 9.5 cm x 8.9 cm)
Weight 0 lbs 12.0 oz (0.3 kg)
Tariff Code 8537109060
Country of Origin Austria
Application Memory Slot CompactFlash slot for removable application memory
Backup Battery Buffered by a backup battery (lithium battery, model 4A0006.00 - 000 / 0AC201.91, 3V / 950 mAh, button cell). Replacement interval: every 4 years.
Power Supply 24V DC input voltage, 1.5 amp max current
