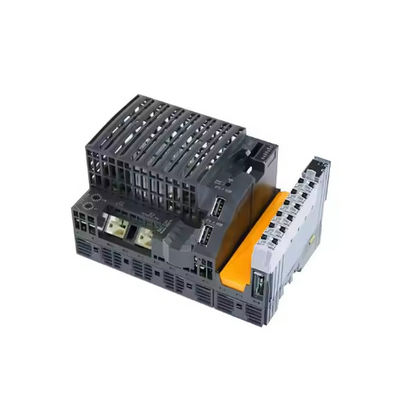

B&R X20CP1586 PLC Module | CAN Bus, RS232 Industrial Automation | 100% Original

B&R X20CP1586 PLC Module | CAN Bus, RS232 Industrial Automation | 100% Original

MOQ: 1
Price: 380$/piece
Standard Packaging: 160*100*100mm
Delivery Period: 3 day
Payment Method: T/T
Supply Capacity: 1piece in stock
Detail Information
Place of Origin
GERMANY
Brand Name
B&R
Certification
3C
Model Number
X20CP1586
Interfaces:
1x RS232, 1x Ethernet, 1x POWERLINK (V1/V2), 2x USB, 1x X2X Link
Controller Redundancy:
No
Storage Health Data Support:
Yes
ACOPOS Support:
Yes
Weight:
400 G
Type:
USB 1.1/2.0
Product Description

Product Hardware Overview



The X20CP1586, with the material number X20CP1586, is a potent controller in the X20 system. It features an Intel Atom 1.6 GHz processor and an additional I/O processor. With 512 MB DDR2 SDRAM, it has sufficient memory for data - handling. It uses CompactFlash as removable application memory. The fanless design ensures reliability and low - maintenance operation, making it suitable for various industrial environments.

Standard Features and Performance



This controller comes with standard features like USB, Ethernet, and POWERLINK. The Ethernet interface can handle gigabit - range communication, providing high - speed data transfer. The POWERLINK interface supports poll response chaining mode (PRC), enhancing real - time network performance. These features make it ideal for applications demanding short cycle times, large - scale data processing, or floating - point operations.

Expansion Capability



The X20CP1586 is equipped with one slot for X20 communication modules. This slot allows for easy integration of various bus and network systems into the X20 system. By using different communication modules, users can customize the controller to meet specific application requirements, increasing its flexibility and adaptability in diverse industrial scenarios.


Item value
Model Number X20CP1586
Brand Name B&R
Bus controller controller
Status indicators CPU function, Ethernet, POWERLINK, CompactFlash, battery
Diagnostics

Battery Yes

using LED status indicator and software CPU function Yes, using LED status indicator CompactFlash Yes

using LED status indicator Ethernet Yes

using LED status indicator POWERLINK Yes

using LED status indicator Temperature Yes

using software register

Support

Controller redundancy No Storage health data support Yes

ACOPOS support Yes

Visual Components support Yes

Power consumption without interface module and USB 9.7W for X2X Link power supply 1.42W Internal I/O 0.6W
Certifications CE YES

Certifications ATEX



Zone 2, II 3G Ex nA nC IIA T5 Gc IP20, Ta (see X20 user's manual)FTZÚ 09 ATEX 0083X

Certifications U L



cULus E115267

Industrial control equipment

Certifications HazLoc cCSAus 244665 Process control equipment for hazardous locations Class I, Division 2, Groups ABCD, T5

Certifications DNV



Temperature: B(0 to 55°C)

Humidity: B(up to 100%)

Vibration: B(4 g)

EMC: B(bridge and open deck)
