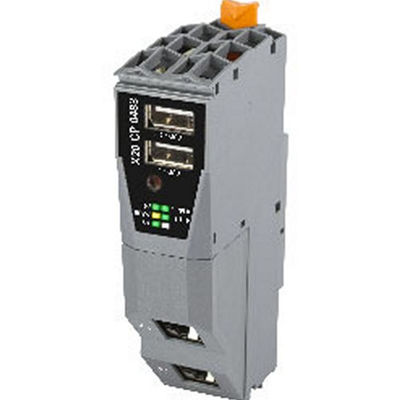

B&R X20CP0483 Compact - S Controller: High - Performance ARM Cortex - A9, 500 MHz, POWERLINK, Ethernet, USB - Ideal for Industrial Automation Solutions

B&R X20CP0483 Compact - S Controller: High - Performance ARM Cortex - A9, 500 MHz, POWERLINK, Ethernet, USB - Ideal for Industrial Automation Solutions

MOQ: 1
Price: 330$/piece
Standard Packaging: 110*60*60mm
Delivery Period: 3 day
Payment Method: T/T
Supply Capacity: 1piece in stock
Detail Information
Place of Origin
GERMANY
Brand Name
B&R
Certification
3C
Model Number
X20CP0483
FPU:
Yes
Type:
ARM Cortex-A9
Data Code:
32 KB
Program Code:
32 KB
L2 Cache:
512 KB
Transfer Rate:
10/100 Mbit/s
Product Description

Material Number and Core Hardware Configuration



The material number of this product is X20CP0483. It is a part of the X20 Compact - S family. Equipped with an ARM Cortex - A9 processor running at 500 MHz and an integrated I/O processor, it offers substantial computing power. It has 256 MB DDR3 SDRAM for smooth operation and a 1 GB onboard flash drive for data storage. The inclusion of 32 kB FRAM for remanent variables storage further enhances its data - handling capabilities.



Physical Design Features



The X20CP0483 stands out for its physical design. It is fanless and battery - free, which means it is maintenance - free, reducing the total cost of ownership. Its extremely compact size makes it suitable for applications where space is at a premium. This design not only saves space but also ensures reliability as there are no moving parts like fans that could potentially fail.



Communication and Expansion Capabilities



This controller offers a rich set of communication options. POWERLINK with onboard poll response chaining, Ethernet, and 2x onboard USB ports enable seamless connectivity. It also has an RS232 interface. Additionally, an optional RS485 or CAN interface is available. For applications with more complex requirements, it can be modularly expanded with one or two X20 interface slots, allowing the use of the entire X20 fieldbus interface product range.





Attribute Classification

Specific Attribute

Details

Basic Information

Model Number

X20CP0483



Brand

B&R



System Module Type

Controller



B&R ID Code

0xE952



Cooling Method

Fanless



Status Indicators

CPU function, Ethernet, POWERLINK

Processor

Type

ARM Cortex - A9



Clock Frequency

500 MHz



L1 Cache (Data Code)

32 kB



L1 Cache (Program Code)

32 kB



L2 Cache

512 kB



Integrated I/O Processor

Can process I/O data points in the background

Memory

Standard Memory (RAM)

256 MB DDR3 SDRAM



Application Memory (Type)

1 GB eMMC flash memory



Application Memory (Data Retention Period)

10 years



Application Memory (Guaranteed Writable Data Amount)

40 TB



Application Memory (Writable Data Amount in 5 Years)

21.9 GB/day



Application Memory (Guaranteed Erase/Write Cycles)

20,000 times



Application Memory (Error Correction Code, ECC)

Yes

Interfaces

Ethernet

1 piece, RJ45 shielded interface, maximum transmission rate 10/100 Mbit/s, physical layer 10BASE - T/100BASE - TX, supports half-duplex, full-duplex, auto-negotiation, auto-MDI/MDIX, maximum segment length between two stations is 100 m



POWERLINK V2

1 piece, Type 6, RJ45 shielded interface, transmission rate 100 Mbit/s, physical layer 100BASE - TX, supports half-duplex in POWERLINK mode, full-duplex in Ethernet mode, supports auto-negotiation, auto-MDI/MDIX, maximum segment length between two stations is 100 m



USB

2 pieces, Type A interface, USB 1.1/2.0 standard, maximum output current of each interface is 0.2 A



X2X Link

1 piece, master node



Interface Module Slots (X20BB5x)

0 pieces



Interface Module Slots (X20BB6x)

1 piece



Interface Module Slots (X20BB7x)

2 pieces

Diagnostics

CPU Function Diagnosis

Through LED status indicator



Ethernet Diagnosis

Through LED status indicator



POWERLINK Diagnosis

Through LED status indicator



Temperature Diagnosis

Through software register

Support

Controller Redundancy

No



Storage Health Data Support

Yes



ACOPOS Support

Yes



Visual Components Support

Yes

Power Supply

Power Consumption

2.9 W



Additional Power Consumption Caused by Actuators (Resistive)

None

Certifications

CE

Yes



UKCA

Yes



ATEX

Zone 2, II 3G Ex nA nC IIA T5 Gc, IP20, Ta (see X20 user manual), FTZÚ 09 ATEX 0083X



UL

cULus E115267 (Industrial control equipment)



HazLoc

cCSAus 244665 (Process control equipment for hazardous locations, Class I, Division 2, Groups ABCD, T5)



DNV

Temperature: B(0 to 55°C); Humidity: B(up to 100%); Vibration: B(4 g); EMC: B(bridge and open deck)



CCS

Yes



LR

ENV1



KR

Yes



ABS

Yes



BV

EC33B, Temperature: 5 - 55°C, Vibration: 4 g, EMC: Bridge and open deck

Real-time Clock

Retention Time

At least 300 hours, typical value is 1000 hours at 25°C



Resolution

1 s



Accuracy (at 25°C)

-18 to 28 ppm

Floating-point Unit (FPU)

Existence

Yes

Residual Variable Storage

Storage Method

32 kB FRAM



Retention Time

> 10 years

Shortest Task Class Cycle Time

0.8 ms



Typical Instruction Cycle Time

0.0145 µs



Electrical Characteristics

Electrical Isolation

Ethernet (IF2) and POWERLINK (IF3) are isolated from each other, other interfaces and PLC; Isolation of X2X (IF6) from other interfaces and PLC: Yes when using X20PS9600, No when using X20PS9602; USB (IF4, IF5) are not isolated from each other and PLC

Operating Conditions

Installation Orientation

Horizontal: Yes; Vertical: Yes



Installation Altitude

0 to 2000 m: No limitation; > 2000 m: Ambient temperature decreases by 0.5°C per 100 m increase in altitude



Protection Level (EN 60529)

IP20

Environmental Conditions

Operating Temperature (Horizontal Installation)

-25 to 60°C



Operating Temperature (Vertical Installation)

-25 to 50°C (See the derating details in the X20PS960x data sheet)



Storage Temperature

-40 to 85°C



Transportation Temperature

-40 to 85°C



Relative Humidity (Operating)

5 to 95%, no condensation



Relative Humidity (Storage)

5 to 95%, no condensation



Relative Humidity (Transportation)

5 to 95%, no condensation
