MOQ: | 1set |
Price: | $10-$1000 |
Standard Packaging: | 100% original carton package |
Delivery Period: | 5-10 workday |
Payment Method: | TNT DHL FEDEX EMS UPS |
Supply Capacity: | 100set/month |
Material number:
8BCR0020.1121A-0
Description:

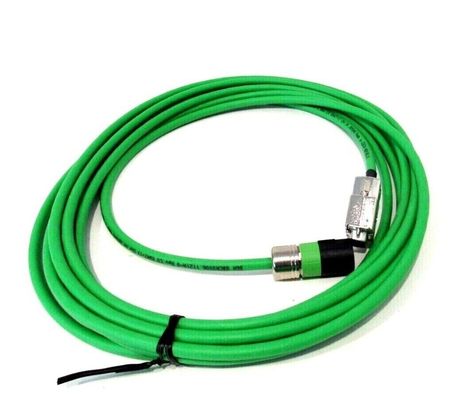

Resolver cable, length 20 m, 3x 2x 24 AWG (19x 0.127), 12-pin female series 615 signal connector, 9-pin male DSUB servo connector, can be used in cable drag chains
The B&R ControlNet Interface Module is an inductive process control module that is designed to provide reliable and accurate control signals for your industrial automation applications. It is equipped with a microprocessor control module that ensures precise control over your plant processes.
Our product is shipped using DHL, UPS, TNT, FEDEX, and ARAMEX, ensuring that you receive your orders in a timely and efficient manner. We package our products in paper boxes to ensure that they are not damaged during transit, giving you peace of mind knowing that your order will arrive in perfect condition.
At B&R, we understand that time is of the essence when it comes to industrial automation. That's why we offer a one-stop service that allows you to get all of your automation needs met in one place. With our B&R ControlNet Interface Module, you can rest assured that you are getting a product that is reliable, accurate, and efficient.
So if you're looking for a high-quality inductive process control module that is designed to provide reliable and accurate control signals for your industrial automation applications, look no further than the B&R ControlNet Interface Module.
General information
Cable cross section |
3x 2x 24 19 AWG |
Durability |
Oil resistance per VDE 0472 Part 803 as well as standard hydraulic oils |
Certification |
UL AWM Style 20671, 90°C, 30 V, E63216 and CSA AWM, 90°C, 30 V, I/II A/B FT1 LL46064 |
Certifications |
|
CE |
Yes |
UKCA |
Yes |
UL |
cULus E225616 |
Cable construction
Signal line |
|
Quantity |
6 |
Wire insulation |
Special thermoplastic material |
Wire colors |
White/Brown, green/yellow, gray/pink |
Variant |
Tinned copper stranded wire |
Cross section |
24 AWG / 19 AWG |
Shield |
No |
Stranding |
White with brown, green with yellow, gray with pink |
Cable stranding |
The 3 pairs together covered by foil shield |
Cable shield |
Copper braiding, optical coverage ≥90% and foil shield |
Outer jacket |
|
Material |
PUR |
Color |
Green, similar to RAL 6018 flat |
Labeling |
B&R 3x2x24 AWG FLEX UL AWM STYLE 20671 90°C 30 V E63216 CSA AWM 90°C 30 V I/II A/B FT1 LL46064 |
Connector
Type |
12-pin female series 615 signal connector |
Mating cycles |
<500 |
Contacts |
12 |
Additional connectors |
9-pin male DSUB servo connector |
Degree of protection per EN 60529 |
IP66/67 when connected |
Electrical properties
Operating voltage |
≤30 Veff |
Test voltage |
|
Wire - Wire |
1.5 kV |
Wire - Shield |
0.8 kV |
Conductor resistance |
|
Signal line |
≤86 Ω/km |
Insulation resistance |
>200 MΩ*km |
Ambient conditions
Temperature |
|
Moving |
-20°C to +80°C |
Static |
-20°C to +80°C |
Mechanical properties
Dimensions |
|
Length |
20 m |
Diameter |
6.5 mm ±0.2 mm |
Bend radius |
|
Single bend |
≥20 mm |
Moving |
≥50 mm |
Drag chain data |
|
Acceleration |
≤6 g |
Flex cycles |
>3,000,000 |
Velocity |
≤4 m/s |
Weight |
1.4 kg |
The B&R PLC Module is suitable for use in a wide range of industries, including manufacturing, packaging, and transportation. It is ideal for applications that require precise and accurate control of machinery and equipment. The module is easy to install and use, making it a popular choice for businesses of all sizes. It is available for purchase with a minimum order quantity of 1 set, and the price ranges from $10 to $1000, depending on the specific model.
The B&R PLC Module is packaged in 100% original carton packaging, ensuring that it arrives in perfect condition. The delivery time is typically 5-10 workdays, and payment can be made through TNT, DHL, FedEx, EMS, or UPS. The module is supplied with a 12-month warranty, giving customers peace of mind that they are making a wise investment. The module is available for export from ports such as Xiamen, Guangzhou, and Shenzhen, making it easy for businesses worldwide to access this top-quality product.
In conclusion, the B&R PLC Module is a versatile and reliable Electronic Control Module that is ideal for a wide range of industrial applications. It is easy to use, affordable, and comes with a 12-month warranty. If you are looking for a high-quality module that can handle all your automation and control needs, look no further than the B&R PLC Module.
X20DC4395 |
X20IF2772 |
8BVI0055HWD0.000-1 |
X20BT9100 |
X20DI2377 |
8BVI0055HWS0.000-1 |
X20DI9371 |
8V1180.00-2 |
8BVI0220HWS0.000-1 |
X20AT6402 |
8V1022.00-2 |
8BCM0002.1034C-0 |
X20AI4622 |
8V1320.00-2 |
8BCR0002.1121A-0 |
x20at4222 |
8V1640.00-2 |
80VD100PD.C022-01 |
x20bt9400 |
8V1016-00-2 |
5AP5120.1505-000 |
X20AT2222 |
X20CM0985-1 |
8B0P0440HW00.001-1 |
X20AO4622 |
X20DS1319 |
X20SO4100 |
X20DO9322 |
0CFCRD.0512E.02 |
8LSA73.R2030D200-3 |
Product Packaging:
Shipping:
Q1: What is the brand name of this PLC module?
A1: The brand name of this PLC module is B&R, which originates from Austria.
Q2: What certifications does this product have?
A2: This product has CE, UKCA, ATEX, UL, and other certifications.
Q3: What is the minimum order quantity for this product?
A3: The minimum order quantity for this product is 1 set.
Q4: What is the price range for this product?
A4: The price range for this product is between $10 and $1000.
Q5: What are the payment and delivery terms for this product?
A5: The payment terms for this product include TNT, DHL, FEDEX, EMS, and UPS. The delivery time for this product is 5-10 workdays, and it comes with 100% original carton packaging. The supply ability for this product is 100 sets per month.
