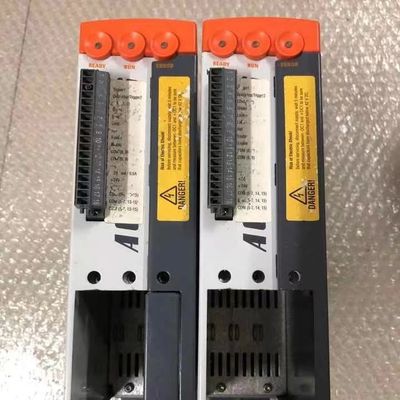

B&R 8V1016.50-2 Servo Motor Protector Drive Module 8V1016.502

B&R 8V1016.50-2 Servo Motor Protector Drive Module 8V1016.502

MOQ: 1pc
Price: $1-$1000
Standard Packaging: new in box
Delivery Period: 3-5days
Acopos Servo Drive, 3x 110-230 V / 1x 110-230 V, 3.6 A, 0.7 Kw, Line Filter
Payment Method: T/T, L/C
Supply Capacity: 30pcs/month
Detail Information
Place of Origin
Austria
Brand Name
B&R
Model Number
8V1016.50-2 ACOPOS
Warranty:
1year
B&R ID Code:
0x18D7
Slots For Plug-in Modules:
3
Frequency:
50 / 60 Hz ±4%
Installed Load:
Max. 2.1 KVA
Inrush Current:
5 A (at 230 VAC)
Switch-on Interval:
>10 S
DC Bus Capacitance:
2040 µF
Product Description
B&R 8V1016.50-2 Servo Motor Protector Drive Module 8V1016.502 0B&R 8V1016.50-2 Servo Motor Protector Drive Module 8V1016.502 1


































B&R 8V1016.50-2 Servo Motor Protector Drive Module 8V1016.502 2








General information
B&R ID code 0x18D7
Slots for plug-in modules 3
Certifications
CE Yes
UKCA Yes
Functional safety Yes
UL cULus E225616
Power conversion equipment
EAC Yes
KC Yes
Mains connection
Permissible network configurations TT, TN
Mains input voltage 3x 110 VAC to 230 VAC ±10% or 1x 110 VAC to 230 VAC ±10%
Frequency 50 / 60 Hz ±4%
Installed load Max. 2.1 kVA
Inrush current 5 A (at 230 VAC)
Switch-on interval >10 s
Integrated line filter per EN 61800-3, category C3 Yes
Power dissipation at device nominal power without braking resistor 110 W
DC bus connection
DC bus capacitance 2040 µF
24 VDC power supply
Input voltage 24 VDC +25% / -20%
Input capacitance 5600 µF
Current consumption Max. 1.47 A + Current for motor holding brake
Motor connection
Quantity 1
Continuous current 3.6 Aeff
Reduction of continuous current depending on ambient temperature
Mains input voltage: 110 VAC
Switching frequency 5 kHz No reduction
Switching frequency 10 kHz No reduction
Switching frequency 20 kHz No reduction
Mains input voltage: 230 VAC
Switching frequency 5 kHz No reduction
Switching frequency 10 kHz No reduction
Switching frequency 20 kHz No reduction
Reduction of continuous current depending on installation elevation
Starting at 500 m above sea level 0.36 Aeff per 1000 m
Peak current 12 Aeff
Nominal switching frequency 10 kHz
Possible switching frequencies 5 / 10 / 20 kHz
Insulation stress of the connected motor per IEC TS 60034-25:2004 Limit value curve A
Max. motor line length 15 m
Protective measures
Overload protection Yes
Short-circuit and ground fault protection Yes
Max. output frequency 598 Hz
Terminal connection cross section
Flexible and fine-stranded wires
With wire end sleeves 0.25 to 4 mm²
Approbation data
UL/C-UL-US 30 to 10 AWG
CSA 28 to 10 AWG
Motor holding brake connection
Response threshold for open-circuit monitoring Approx. 245 mA
Max. output current 1.3 A
Max. number of switching cycles Unlimited since implemented electronically
Braking resistor
Peak power output 1.9 kW
Continuous power 130 W
Limit switch and reference inputs
Quantity 3
Circuit Sink
Electrical isolation
Input - ACOPOS Yes
Input - Input No
Input voltage
Nominal 24 VDC
Maximum 30 VDC
Switching threshold
Low <5 V
High >15 V
Input current at nominal voltage Approx. 4 mA
Switching delay Max. 2.0 ms
Modulation compared to ground potential Max. ±38 V
Enable inputs
Quantity 1
Circuit Sink
Electrical isolation
Input - ACOPOS Yes
Input voltage
Nominal 24 VDC
Maximum 30 VDC
Input current at nominal voltage Approx. 30 mA
Switching threshold
Low <5 V
High >15 V
Switching delay
Enable 0 → 1, ready for PWM Max. 100 µs
Enable 1 → 0, PWM off Max. 2.0 ms
Modulation compared to ground potential Max. ±38 V
OSSD signal connections Not permitted
Trigger inputs
Quantity 2
Circuit Sink
Electrical isolation
Input - ACOPOS Yes
Input - Input No
Input voltage
Nominal 24 VDC
Maximum 30 VDC
Switching threshold
Low <5 V
High >15 V
Input current at nominal voltage Approx. 10 mA
Switching delay
Rising edge 52 µs ±0.5 µs (digitally filtered)
Falling edge 53 µs ±0.5 µs (digitally filtered)
Modulation compared to ground potential Max. ±38 V
Electrical properties
Energy efficiency (IE classification)
Power loss relative to continuous apparent power IE2 (10,25) 5.3%
IE2 (50,25) 5.9%
IE2 (10,50) 5.4%
IE2 (50,50) 6.7%
IE2 (90,50) 9%
IE2 (10,100) 6.3%
IE2 (50,100) 9.7%
IE2 (90,100) 16.5%
Nominal losses in standby mode 12.5 W
Operating conditions
Permissible mounting orientations
Hanging vertically Yes
Horizontal, face up Yes
Standing horizontally No
Installation elevation above sea level
Nominal 0 to 500 m
Maximum 2000 m
Pollution degree per EN 61800-5-1 2 (non-conductive pollution)
Overvoltage category per EN 61800-5-1 II
Degree of protection per EN 60529 IP20
Ambient conditions
Temperature
Operation
Nominal 5 to 40°C
Maximum 55°C
Storage -25 to 55°C
Transport -25 to 70°C
Relative humidity
Operation 5 to 85%
Storage 5 to 95%
Transport Max. 95% at 40°C
Mechanical properties
Dimensions
Width 58.5 mm
Height 257 mm
Depth 220 mm
Weight

2.5 kg



MATERIAL NUMBER:
8V1016.50-2
DESCRIPTION:
  • Designed for operation on a single-phase or three-phase power mains
  • Modular mechanical design using plug-in modules
  • Integrated line filter
  • Integrated braking resistor
  • Integrated electronic restart inhibit
ACOPOS servo drive, 3x 110-230 V / 1x 110-230 V, 3.6 A, 0.7 kW, integrated line filter, braking resistor and electronic safe restart interlock
